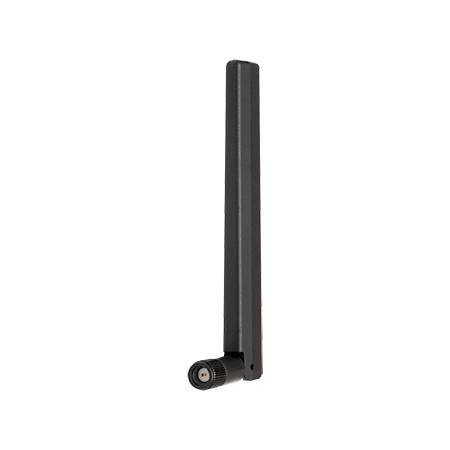

5G/4G Paddle Antenna 617-5925MHz | SMA Connector | Compact Design by Matchmaster
5G/4G paddle antenna with 617-5925MHz frequency range and SMA connector—ideal for telecommunications and IoT applications. Built for enhanced connectivity, with a compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5G/4G Paddle Antenna 617-5925MHz SMAp
Brand: Matchmaster
SKU: 56MM-5GPA1
Alternatively Known As: 5G Paddle Antenna, 4G LTE Paddle Antenna, Cellular Paddle Antenna, SMA Male Paddle Antenna, Flexible Paddle Antenna
Technical Specifications
- Frequency Range: 617-960MHz, 1427-2690MHz, 3300-5000MHz, 5150-5925MHz
- Technologies Supported: 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G
- Peak Gain: 1.6 dBi (5G NR)
- Return Loss: ~-11.2 to ~-8.8 dB depending on band
- VSWR: ~2.0:1 to ~2.6:1 depending on band
- Efficiency: ~35.1% to ~43.3% depending on band
- Impedance: 50 Ohm
- Polarisation: Linear
- Radiation Pattern: Omnidirectional
- Max Input Power: 25W
- Connector Type: SMA Male
- Mounting Type: Connector Mount with hinged feature
- Radome Material: PC/ABS UV Stable
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
- Measurement Conditions: Free Space, Certified CTIA 3D Anechoic Chamber
- Dimensions (H x L x W): 10mm x 135mm x 19mm
- Weight: 0.1 kg
Key Features
- Paddle antenna covering 4G LTE and 5G NR bands from 617-5925MHz
- 1.6 dBi 5G NR peak gain
- Industry-leading 4.3-10 interfaces with an insertion loss of 0.1dB
- Ground plane independent dipole antenna
- Self-supporting hinged mount with SMAp connector
- Flexible paddle-style design with hinged swivel for flexible antenna orientation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal antenna orientation and connection integrity.
Applications
- Small room coverage
- Use with Cel-Fi signal repeaters
- Routers
- ATMs
- IoT dispensers
- Vending machines
- Electrical metering
- 4G LTE and 5G NR mobile and Wi-Fi networks
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable UV stable PC/ABS radome for extended product life and reduced waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster for specific warranty details.
Available Now
The Matchmaster 5G/4G Paddle Antenna 617-5925MHz SMAp is available now for immediate purchase. Ideal for enhancing cellular and Wi-Fi network coverage in commercial and residential applications.
