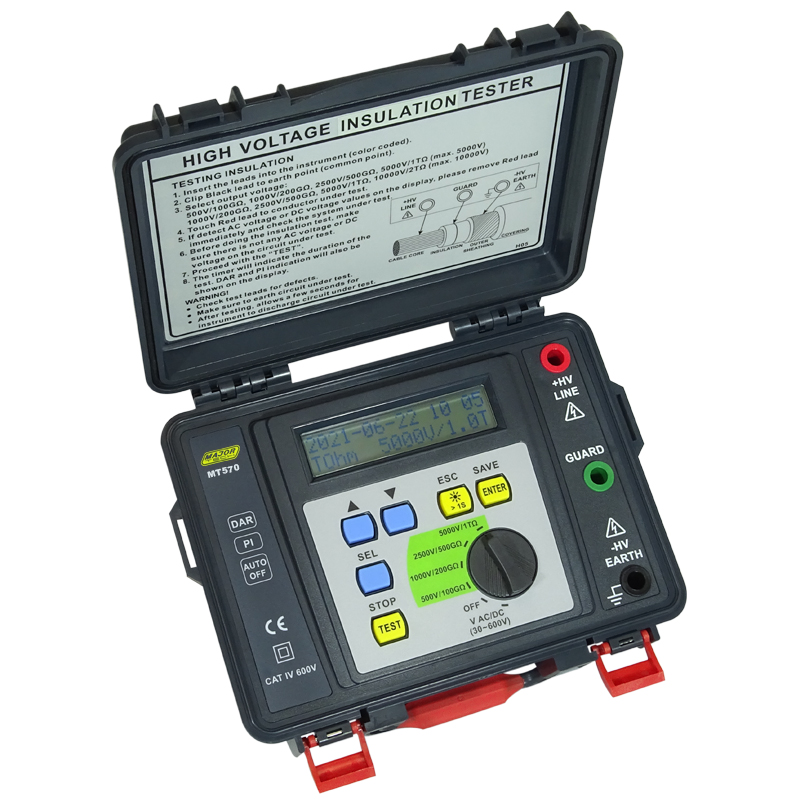

5kV High Voltage Insulation Tester | 1TΩ Resistance | 600V AC Measurement | 200 Test Memory by Majortech
The 5kV High Voltage Insulation Tester measures insulation resistance from 500V to 5000V, making it ideal for testing insulation on transformers, cables, and electric circuits. Built for industrial and electrical maintenance, it features a robust design, automatic circuit discharge, and stores up to 200 test results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5kV High Voltage Insulation Tester | 1TΩ Resistance | 600V AC Measurement | 200 Test Memory by Majortech
Brand: Majortech
SKU: MT570
Alternatively Known As: High Voltage Insulation Tester, 5kV Insulation Resistance Tester, MT570 Insulation Tester, Electrical Insulation Tester
Technical Specifications
- AC Voltage Measurement Range: 1V to 600V
- AC Voltage Resolution: 1V
- AC Voltage Accuracy: ± (2% + 3 digits)
- Insulation Resistance at 500V: Resolution 100GΩ, Accuracy ± (5% + 5 digits)
- Insulation Resistance at 1000V: Resolution 200GΩ, Accuracy ± (5% + 5 digits)
- Insulation Resistance at 2500V: Resolution 500GΩ, Accuracy ± (5% + 5 digits)
- Insulation Resistance at 5000V: Resolution 1TΩ, Accuracy ± (5% + 5 digits)
- Short Circuit Current Output: up to 5mA
- Memory Storage: 200 test results
- Display: 2 lines x 16 characters LCD
- Dimensions (H x L x W): 100mm x 300mm x 200mm
- Weight: 1.5 kg
Key Features
- Measures insulation resistance from 500V DC to 5000V DC
- Automatic circuit discharge after test completion
- Rotary selector switch with 4 preset voltage ranges: 500V, 1000V, 2500V, 5000V
- Insulation resistance measurement up to 1TΩ
- Microprocessor controlled with diagnostic capabilities
- Short circuit current output up to 5mA
- Stores 200 test measurement results in memory
- Large intelligent LCD display with 2 lines x 16 characters
- Measures AC and DC voltage up to 600V
- Robust case suitable for extended field use
- Powered by 8 x 'C' 1.5V batteries
Professional Installation Requirements
- No professional installation required; however, training in high voltage testing and safety precautions is recommended.
Applications
- Testing insulation on rotating machines
- Transformers insulation testing
- Cables insulation testing
- High voltage generators
- Electric circuits
- Surge arrestors
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Battery-powered for portable use reducing need for external power sources
- Durable design reduces waste through long product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT570 5kV High Voltage Insulation Tester is available now for immediate purchase. Ideal for mining, industrial, and electrical maintenance applications.
