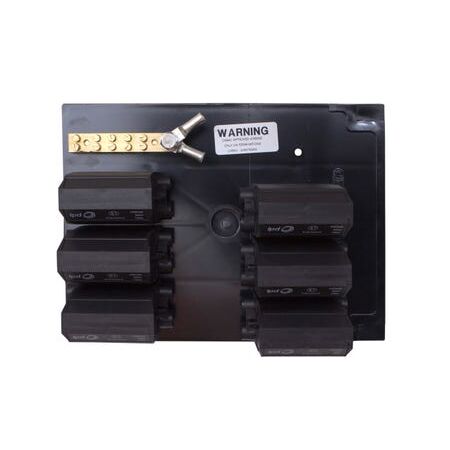

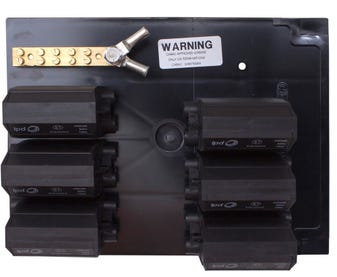

6 Fuse Panel Assembly | Thermoplastic Design | Tapered Corners & Earth Neutral Bar | Compatible with Existing Installations by Cabac
The Cabac 6 Fuse Panel Assembly features a thermoplastic design with tapered corners for secure fitting in pillar bases, compatible with existing installations and suitable for up to 6 fuses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6 Fuse Panel Assembly
Brand: Cabac
SKU: 6F-MPM-AS-SQ
Alternatively Known As: Fuse Panel, Electrical Fuse Board, Pillar Fuse Panel, 6 Way Fuse Panel
Technical Specifications
- Material: Electrical grade thermoplastic and resin impregnated fibre board
- Fuse holder size: 22x57mm fuses BS1361
- Design: Tapered corners to fit slots on base for secure installation
- Includes earth neutral bar
- Compatible with pillars with long lids PBL & PBHCV
- Dimensions (H x L x W): 150mm x 50mm x 200mm
- Weight: 0.5 kg
Key Features
- Thermoplastic panel with tapered edges to engage slots in the pillar base
- Includes earth neutral bar
- Compatible with existing installations
- Available for up to 6 fuses
- Fuse holder for 22x57mm fuses BS1361
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical pillar installations requiring fuse protection
- Suitable for pillars with long lids PBL & PBHCV
- Replacement or upgrade of existing fuse panel assemblies
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable thermoplastic material reduces need for frequent replacements
- Supports safe electrical installations reducing risk of faults and hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms.
Available Now
The Cabac 6 Fuse Panel Assembly is available now for immediate purchase. Ideal for electrical pillar installations requiring secure and reliable fuse protection.
