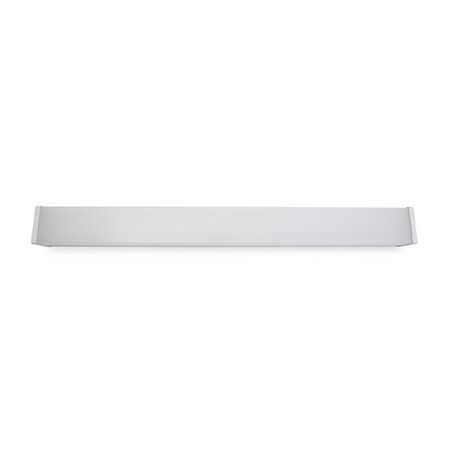

600mm Diffused LED Emergency Batten | Tri-CCT with Sensor | IP20 Rated | by Ektor
The 600mm Diffused LED Emergency Batten is designed for versatile lighting solutions, featuring Tri-CCT adjustable lighting and a microwave sensor for enhanced functionality. Ideal for commercial and industrial applications, this batten ensures reliable emergency illumination with a maintained mode lasting up to 90 minutes. With a high system efficiency of 118 lm/W and a durable powder-coated steel body, it meets safety standards while providing energy-efficient performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Sensor LED Batten, Emergency LED Light with Sensor, Surface Mount LED Batten
Technical Specifications
- Dimensions (H x L x W): 70mm x 80mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT (Correlated Colour Temperature) adjustable lighting
- Microwave sensor with adjustable hold time, detection area, and lux adjustment
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 118 lm/W
- IP20 rated surface mount fitting with powder coated steel body and PMMA diffuser
- Fixed output constant current driver included
- Non-dimmable
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 60,000 hours (L70B10)
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sensor configuration.
Applications
- Commercial and industrial lighting
- Emergency and exit lighting
- Surface mounted indoor lighting
- Corridors, stairwells, and general indoor areas requiring emergency illumination
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Part 2.1: Particular Requirements - Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – Performance of Lighting Control Devices
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 8 years reduces waste and replacement frequency
- Low standby power consumption (1 W) minimizes energy use when idle
- Ipart, REES, and VEU approved for energy savings schemes
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available to registered users in defined regions. Warranty valid up to 25,000 operating hours or warranty period, whichever occurs first.
Available Now
The Ektor UMBRA ADVANCED 600mm Diffused LED Batten with Tri-CCT and sensor is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications requiring energy-efficient and compliant illumination.
