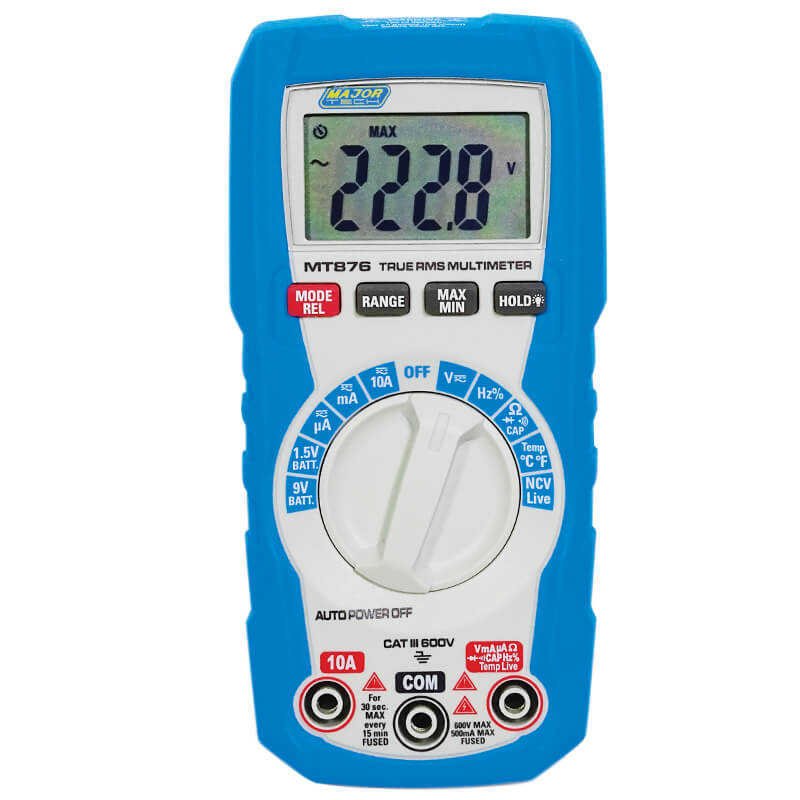

600V AC/DC True RMS Multimeter | Compact Design | Drop Tested | Auto Ranging by Majortech
The 600V AC/DC True RMS multimeter offers a compact design and drop-tested durability—ideal for electricians and technicians. With auto ranging and a 4000 count LCD display, it’s perfect for accurate electrical measurements and troubleshooting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 600V AC/DC True RMS Multimeter | Compact Design | Drop Tested | Auto Ranging by Majortech
Brand: Majortech
SKU: MT876
Alternatively Known As: True RMS Multimeter, Digital Multimeter, AC/DC Multimeter, Electrical Tester, MT876 Multimeter
Technical Specifications
- AC True RMS Voltage: 0.1mV to 600V, Resolution: 0.1V, Accuracy: ±(1.2% + 5 digits)
- DC Current: 0.1µA to 10A, Resolution: 0.1mA, Accuracy: ±(1.0% + 5 digits)
- AC True RMS Current: 0.1µA to 10A, Resolution: 0.1mA, Accuracy: ±(1.2% + 5 digits)
- Frequency: 0.001Hz to 9.999MHz, Resolution: 0.001Hz, Accuracy: ±(1.2% + 5 digits)
- Capacitance: 0.01nF to 99.9mF, Resolution: 0.01nF, Accuracy: (3.5% + 5 digits)
- Duty Cycle: 0.5% to 99.9%, Resolution: 0.10%, Accuracy: ±(1.2% + 5 digits)
- Resistance: 0.1Ω to 40MΩ, Resolution: 0.1Ω, Accuracy: ±(1.5% + 5 digits)
- Temperature: -18°C to 1000°C, Resolution: 1°C, Accuracy: ±(1.5% + 5°C)
- Dimensions (H x L x W): 150mm x 35mm x 70mm
- Weight: 0.3 kg
Key Features
- Compact True RMS multimeter with double moulded rubber housing
- Drop tested up to 2 meters for rugged work site use
- Auto ranging with manual override option
- 4000 count LCD display with backlight
- Live function detects live contact with visual and audible alerts
- Conforms to IEC 61010-1 CAT III 600V safety standard
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained technicians.
Applications
- Electricians for electrical measurements and troubleshooting
- Electronic technicians for circuit testing
- Air conditioning industry for system diagnostics
- DIY users for home electrical projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste by extending product lifespan
- Energy efficient operation minimizes battery consumption
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT876 600V AC/DC True RMS Multimeter is available now for immediate purchase. Ideal for electrical testing and diagnostics in residential and industrial environments.
