65mm BSP Threaded Storz x 80mm RG Inlet | Angled Design | Durable Brass Construction | Painted Red by Firebox

BRAND: Firebox
SKU: HVVCRG-BR
$308.20 List price: $373.10
+
65mm BSP threaded storz x 80mm RG inlet with an angled design and durable brass construction—ideal for fire hydrant systems in Victoria. Built for industrial and commercial fire safety installations, with a painted red finish for corrosion resistance.

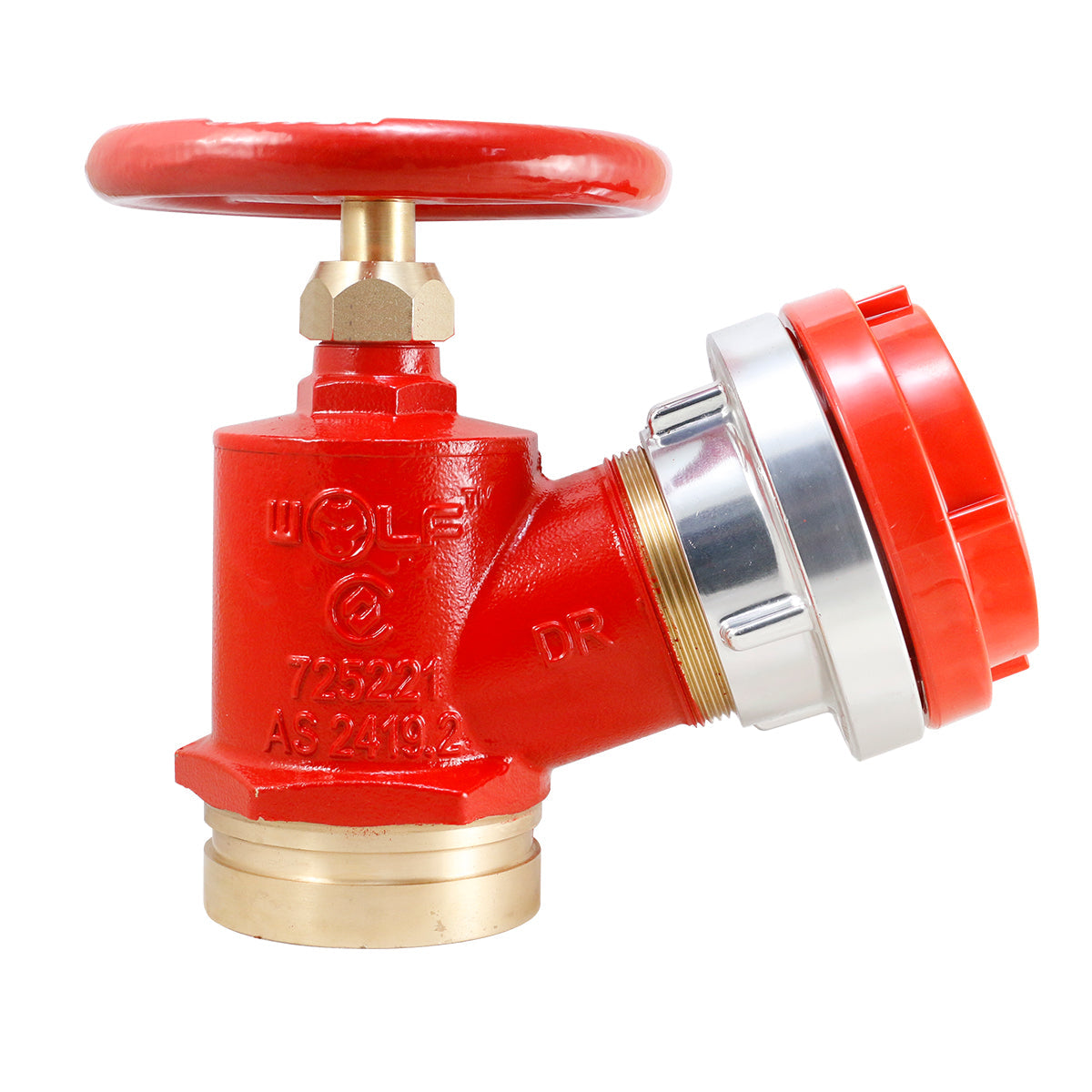

Product Name/Title: 65mm BSP Threaded Storz x 80mm RG Inlet | Angled Design | Durable Brass Construction | Painted Red by Firebox

Brand: Firebox

SKU: HVVCRG-BR

Alternatively Known As: 65mm BSP Storz Adaptor, 80mm Roll Grooved Inlet, Fire Hydrant Storz Connector, Firebox Storz Inlet

Technical Specifications
  • Thread type: Angled 65mm BSP forged storz adaptor with UV plastic cap
  • Inlet type: 80mm roll grooved
  • Construction: Brass
  • Hand wheel construction: Carbon steel
  • Finish: Painted red
  • Working pressure: 1,400 kPa
  • Test pressure: 3,200 kPa
  • Unit weight: 4.5 kg
  • Dimensions (H x L x W): 65mm x 150mm x 80mm
  • Weight: 4.5 kg
Key Features
  • Angled 65mm BSP forged storz adaptor with UV plastic cap
  • 80mm roll grooved inlet
  • Constructed from durable brass with painted red finish
  • Hand wheel made from carbon steel
  • Working pressure of 1,400 kPa and test pressure of 3,200 kPa
Professional Installation Requirements
  • Installation should be performed by qualified fire protection system professionals to ensure compliance with local fire safety regulations and standards.
Applications
  • Fire hydrant systems in Victoria (VIC)
  • Fire protection infrastructure requiring 65mm BSP threaded storz connections
  • Industrial and commercial fire safety installations
Standards & Compliance
  • AS/NZS 2419 – Fire Hydrant Systems
Environmental Benefits
  • Durable brass construction reduces need for frequent replacements, minimizing waste
  • Painted finish protects against corrosion, extending product lifespan
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The 65mm BSP Threaded Storz x 80mm RG Inlet (20 Degree) by Firebox is available for immediate purchase, ideal for fire hydrant system installations in Victoria.
