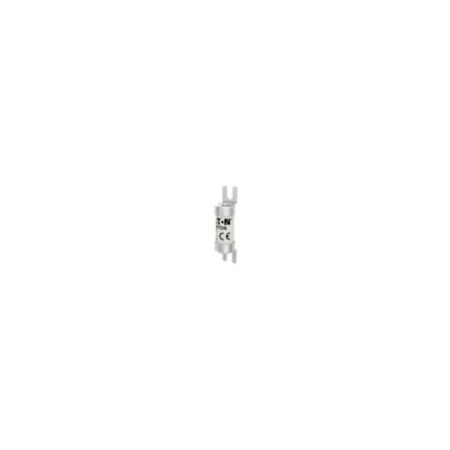

6AMP BS88 Fuse | 550V AC | 80kA Breaking Capacity | gG/gL Class by Eaton
The 6AMP BS88 fuse offers a 550V AC voltage rating and an impressive 80kA breaking capacity—ideal for industrial and commercial electrical protection. Built for low voltage circuits, it features offset bolted tags for secure fitting and complies with AS/NZS 60269 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 6AMP BS88 Fuse | 550V AC | 80kA Breaking Capacity | gG/gL Class by Eaton
Brand: Eaton
SKU: NITD6
Alternatively Known As: 6A BS88 Fuse, 6 Amp British Standard Fuse, 550V AC Fuse, Eaton NITD6 Fuse
Technical Specifications
- Amperage Rating: 6 A
- Voltage Rating: 550 V AC
- Fuse Type: NITD
- Class: gG/gL
- Breaking Capacity: 80 kA
- Construction: BS88/A1
- Dimensions: 14 x 14 x 55 mm
- Fitted with offset bolted tags
- Suitable for CM32FC Camaster and RS20 Red spot fuse holders
- Dimensions (H x L x W): 14mm x 55mm x 14mm
- Weight: 0.016 kg
Key Features
- 6 Ampere current rating
- 550 Volt AC voltage rating
- BS88/A1 construction standard
- Class gG/gL fuse type for general purpose protection
- Breaking capacity of 80 kA
- Offset bolted tags for secure fitting
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper fuse selection and safety compliance.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with CM32FC Camaster fuse holder and RS20 Red spot fuse holder
Standards & Compliance
- Complies with AS/NZS 60269 series for low voltage fuses (aligned with IEC 60269)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty policy for details.
Available Now
The Eaton 6AMP 550V AC BS88 Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
