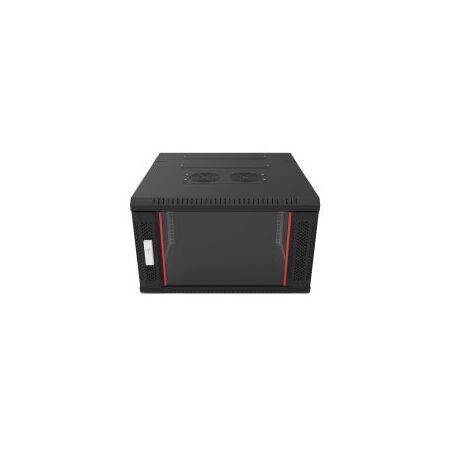

6RU Double Section Wall Mount Rack 600mm Deep V2 Redback
Redback 6RU ZH V2 double section wall mount rack features 600mm depth, 150mm lockable rear swing section, glass door, and welded assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Redback ZH.6606V2, 6RU Swing-Frame Data Cabinet, Double-Section Wall Rack, 19-inch Network Cabinet
Technical Specifications
- Model: ZH.6606V2
- Rack Capacity: 6RU
- Rack Format: 19-inch
- External Width: 600 mm
- External Depth: 600 mm
- External Height: 370 mm
- Load Capacity: 60 kg
- Rear Swing Section: 150 mm, lockable
- Construction: Fully assembled and welded steel frame
- Front Door: Lockable tempered glass
- Shelf: 1 pre-fitted fixed metal shelf
- Cable Entry: Rear cable knockouts
- Earthing: Multiple earthing points with leads fitted
- Included Hardware: 10 spare cage nuts
- Dimensions (H x L x W): 370mm x 600mm x 600mm
- Weight: 20.1 kg
Key Features
- Double-section wall-mount design for front and rear equipment access
- 600 mm external depth for deeper network and communications equipment
- 150 mm lockable rear swing section
- Lockable tempered glass front door
- Fully assembled and welded construction
- Removable side panels for installation and maintenance access
- Pre-fitted fixed metal shelf included
- Multiple earthing points with leads fitted
- 60 kg rated load capacity
Professional Installation Requirements
- Wall mounting should be performed by a suitably qualified installer using fixings appropriate for the wall construction. Confirm the mounting surface and fixings can support the cabinet and installed equipment, up to the stated 60 kg load capacity.
Applications
- Network switches and patch panels
- Structured cabling and telecommunications equipment
- CCTV, security and access-control equipment
- Audio-visual and building-management systems
- Small server and communications installations
- Commercial, industrial and residential network infrastructure
Environmental Benefits
- Steel cabinet construction is recyclable at end of service life
- Durable powder-coated finish and welded construction can extend service life and reduce replacement waste
- Reusable rack format supports equipment upgrades without replacing the cabinet
- Earthing provisions support safe integration of powered rack equipment when installed in accordance with applicable electrical requirements
Warranty Information
5-year warranty against manufacturing defects, as stated for the Redback Racks range by PSS Distributors. Terms and exclusions should be confirmed with the authorised distributor.
Available Now
Available through Redback Racks and authorised Australian distributors; confirm current stock and lead time with the distributor.
