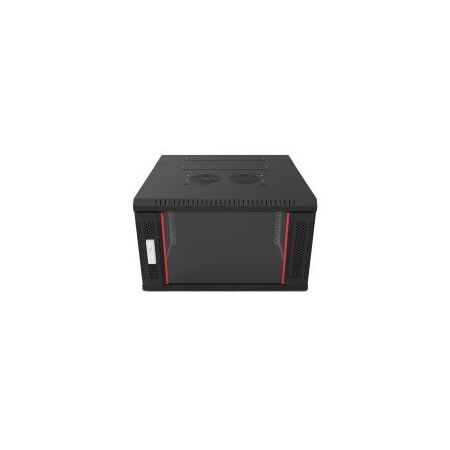

6RU Single Section Wall Mount Rack 450mm Deep V2 Redback
Redback 6RU WM V2 single section wall mount rack features 450mm depth, lockable glass door, integrated shelf, and quick mount bracket.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Redback 6RU Wall-Mount Data Cabinet, Redback WM.6406V2, 19-inch Network Rack Cabinet
Technical Specifications
- Rack Capacity: 6RU
- Rack Format: 19-inch standard equipment
- External Dimensions: 370mm H x 600mm W x 450mm D
- Maximum Static Load: 60kg
- Construction: Fully assembled and welded steel frame
- Material Thickness: 1mm cabinet steel; 1.2mm mounting brackets
- Door: Lockable tempered glass front door
- Shelf: 1 pre-fitted metal shelf
- Mounting: Quick-mount wall bracket and rear panel included
- Cable Access: Top, bottom and rear cable entry points
- Protection Rating: IP20
- Finish: Powder-coated metal frame
- Supplied Accessories: 10 spare cage nuts
- Weight Basis: Approximately 15.1kg, based on the WM.6406 family datasheet
- Dimensions (H x L x W): 370mm x 450mm x 600mm
- Weight: 15.1 kg
Key Features
- 6RU capacity for compact network, telecommunications, security and AV equipment
- 450mm cabinet depth for wall-mounted installations with limited space
- Lockable tempered-glass front door for equipment security and visibility
- Integrated fixed shelf for non-rack-mount equipment
- Quick-mount bracket simplifies wall installation
- Fully assembled and welded cabinet construction
- Removable side panels for equipment access and servicing
- Multiple earthing points with an IP20 powder-coated steel frame
- Rated for a 60kg static equipment load
- Designed for compliance with ANSI/EIA RS-310-D, DIN 41497 Part 1, IEC 297-2 and DIN 41494 Part 7
Professional Installation Requirements
- Wall mounting should be completed by a competent installer using fixings suitable for the wall construction and the loaded cabinet weight. Confirm the mounting surface, anchor capacity, clearances and earthing requirements before installation.
Applications
- Network switches, patch panels and structured cabling equipment
- Telecommunications and data distribution equipment
- CCTV, security and access-control systems
- Audio-visual and control equipment
- Small commercial, residential and industrial communications installations
Environmental Benefits
- Steel cabinet and brackets are recyclable at end of service life
- Durable welded construction can extend service life and reduce replacement waste
- Powder-coated finish provides corrosion resistance without requiring frequent refinishing
- Wall-mounted design can reduce the floor space required for communications equipment
Warranty Information
5-year manufacturer warranty reported for Redback Racks wall-mount cabinets; Australian Consumer Law rights also apply. ([pssdistributors.com.au](https://pssdistributors.com.au/product/wallmount-data-racks/?utm_source=openai))
Available Now
Available through Redback Racks, PSS Distributors and authorised Australian distributors. ([pssdistributors.com.au](https://www.pssdistributors.com.au/p/racks-and-cabinets/data-cabinets/wall-mount?utm_source=openai))
