72 Pole Isolator 250A | Surface Mount | Light Grey by Hager

BRAND: :hager
SKU: JPD7200S25DW
$2,392.20 List price: $2,981.10
Free pick up (over 25 kg and over 1 meter)
For delivery quote message
72 pole isolator with 250A rated current and surface mounting—ideal for commercial and industrial electrical distribution. Built for extensive applications, with a 3-point lever lock for enhanced security.

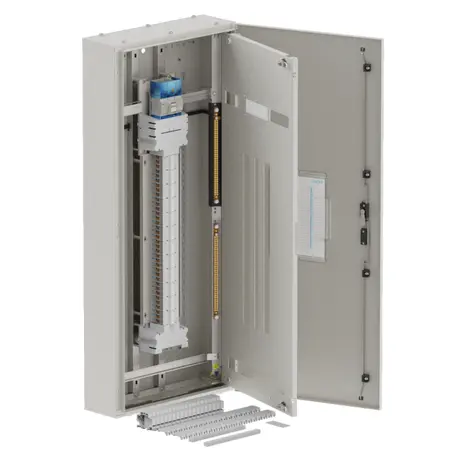

Product Name/Title: DB, apex+, 72Pole,250A Isolator 2x8 Mod+26 Mod, grey, 1400x600x200mm

Brand: Hager

SKU: JPD7200S25DW

Alternatively Known As: Hager 72 Pole Isolator, Hager 250A Isolator, Hager Apex+ Isolator

Technical Specifications
  • Number of accessible phases: 72
  • Rated current: 250A
  • Mounting type: Surface mounting
  • Material: Steel
  • RAL code: 7035
  • Colour: Light grey
  • Ingress Protection (IP) class: IP43
  • Impact resistance: IK05
  • Locking type: 3-point lever, Key lock
  • Dimensions (H x L x W): 1400mm x 200mm x 600mm
  • Weight: 50 kg
Key Features
  • 72 accessible phases for extensive electrical distribution.
  • Rated current of 250A for high-capacity applications.
  • Surface mounting for easy installation.
  • 3-point lever locking mechanism for enhanced security.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Industrial facilities, large buildings
  • General: Electrical distribution and isolation in various settings
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
  • Designed to improve environmental performance by reducing carbon footprint.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager DB Apex+ 72 Pole 250A Isolator is available now for immediate purchase. Ideal for commercial and industrial electrical distribution.

Data Sheet (JPD7200S25DW, 161 Kb) [Download]

Certificate (reach_declaration_JPD7200S25DW1.pdf, 103 Kb) [Download]

Data Sheet (JPD7200S25DW1.webp, 408 Kb) [Download]

Certificate (6LE009744B_Performa_Apex_Apex-Plus_EN_02-2024_Leaflet_web.pdf, 16,805 Kb) [Download]

Certificate (23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
