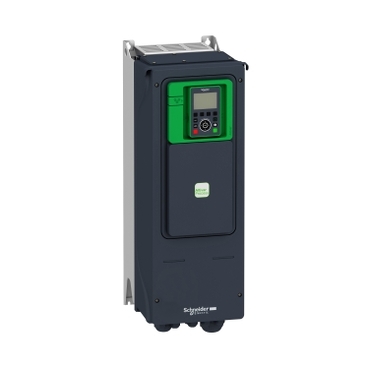

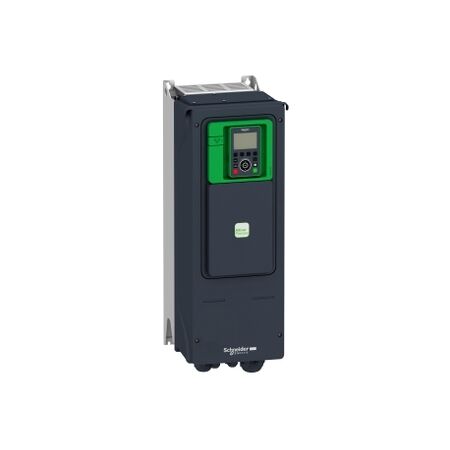

7.5kW Variable Speed Drive IP55 Rated Integrated EMC Filter Clipsal
The 7.5kW Variable Speed Drive is designed for industrial automation, featuring IP55 protection against dust and water
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 7.5kW Variable Speed Drive | IP55 Rated | Integrated EMC Filter | by Clipsal
Brand: Clipsal
SKU: SCHATV950U75N4
Alternatively Known As: ATV950 VSD, Altivar Process Drive, 7.5kW Variable Speed Drive, 400V/480V VSD, SCHATV950U75N4
Technical Specifications
- Power Rating: 7.5kW (10HP)
- Input Voltage: 3-phase 380-480V AC, 50/60Hz
- Output Voltage: 3-phase 0-480V AC
- IP Rating: IP55 (dust and water protected)
- Integrated EMC filter
- Control Type: Vector control, V/F control
- Communication: Modbus, Ethernet, CANopen (option cards available)
- Operating Temperature: -15°C to +50°C (derating above 40°C)
- Safety: Safe Torque Off (STO)
- Display: Graphical keypad
- Dimensions (H x L x W): 520mm x 232mm x 220mm
- Weight: 32 kg
Key Features
- 7.5kW (10HP) power rating
- IP55 rated for dust and water protection
- Supports 3-phase 400V/480V input
- Integrated EMC filter
- Advanced motor control for asynchronous and synchronous motors
- Built-in safety functions including Safe Torque Off (STO)
- Robust design for harsh environments
- Easy-to-use graphical keypad and display
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor drives and in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- HVAC systems
- Material handling
- Water and wastewater treatment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces CO2 emissions through lower energy consumption
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV950 IP55 7.5kW 400V/480V VSD (SCHATV950U75N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust performance and energy efficiency.
