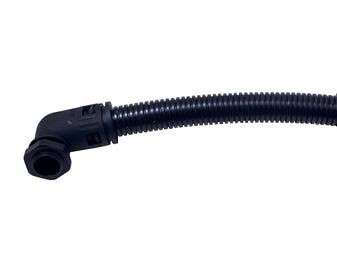

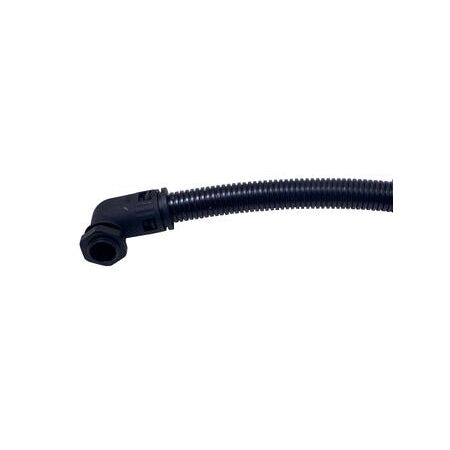

90 DEG Quick Conn 40MM | IP66 Rated | Self-Locking Push-Fit | Low Fire Hazard by Cabac
The Cabac 90 DEG Quick Conn 40MM is a durable, low fire hazard 90-degree conduit connector designed for flexible nylon conduit systems, featuring IP66 protection and easy push-fit installation.
Sign in
Please login to continue to your account.
Product Name/Title: 90 DEG Quick Conn 40MM
Brand: Cabac
SKU: CFM2-40B
Alternatively Known As: 90 Degree Conduit Connector, 90 DEG Quick Connect, 40mm Nylon Conduit Elbow, Low Fire Hazard Conduit Fitting
- Conduit Size: 40mm
- Thread Size: M40 x 1.5
- Material: Polyamide nylon (PA6)
- Temperature Rating: -40 to +115°C (intermittent up to +150°C)
- Ingress Protection: IP66
- Flame Retardant: UL94 V-0
- Self-locking push-fit installation
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
- Made from high quality polyamide nylon, halogen, phosphor and cadmium free
- Self-locking push-fit installation onto conduit, no special tools required
- IP66 rated ingress protection
- UV resistant and flame retardant with UL94 V-0 rating
- Temperature rating from -40 to +115 degrees Celsius (intermittent up to +150 degrees Celsius)
- Anti-static and RoHS compliant
- Installation should be performed by a qualified electrician or professional experienced with conduit systems to ensure compliance with electrical standards and safety.
- Cable management systems requiring flexible conduit routing
- Industrial and commercial electrical installations
- Environments needing low fire hazard and halogen-free fittings
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Halogen, phosphor and cadmium free materials reduce environmental toxicity
- RoHS compliant ensuring reduced hazardous substances
- Durable and UV resistant for long service life reducing waste
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
The Cabac 90 DEG Quick Conn 40MM is available now for immediate purchase. Ideal for electrical conduit installations requiring flexible routing and low fire hazard fittings.
