90 Degree FxF XHP Copper Elbow | 130 Bar Pressure | Up to 150°C | TüV Certified | by Aspen Pumps

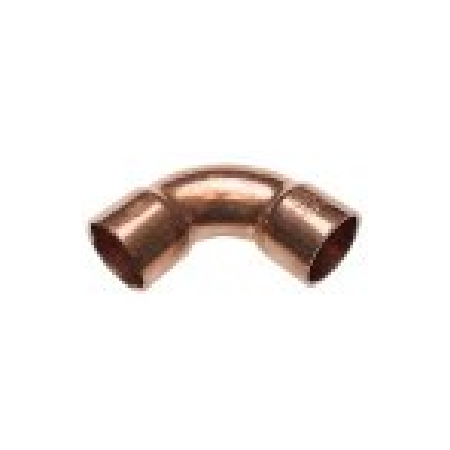

The 90 Degree FxF XHP Copper Elbow is crafted from CuFe2p copper iron alloy, ensuring high corrosion resistance and durability. Rated for 130 bar pressure and temperatures up to 150°C, this fitting is perfect for refrigeration systems using R744 refrigerant and high-pressure hydraulic applications. With TüV certification, it guarantees quality and reliability for industrial and commercial HVAC installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 90 Degree FxF XHP Copper Elbow | 130 Bar Pressure | Up to 150°C | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 123-129002A-218
Alternatively Known As: 90 Degree Copper Elbow F x F, High Pressure Copper Elbow, R744 Refrigeration Elbow, CuFe2p Elbow Fitting
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Connection Type: Female x Female (FxF)
- Angle: 90 degrees
- Certification: TüV certified
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Rated for 130 bar pressure and up to 150°C temperature
- Certified to ASTM B 280 and AS5149.2 standards
- Magnetic identification for easy verification
- Traditional brazed joining method for secure connections
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or plumber experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure hydraulic and cooling systems
- Industrial and commercial HVAC installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports environmentally friendly R744 (CO2) refrigerant systems with low global warming potential
- Durable materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per Aspen Pumps standard policy, typically 1 year against manufacturing defects.
Available Now
Available for immediate purchase, ideal for high pressure refrigeration and HVAC applications requiring reliable copper fittings.
