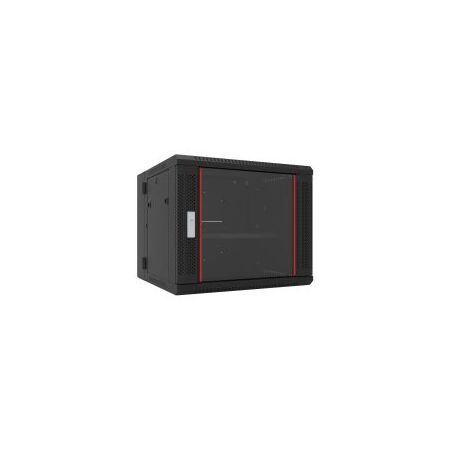

9RU Double Section Wall Mount Rack 600mm Deep V2 Redback
Redback 9RU ZH V2 double section wall mount rack features 600mm depth, 150mm lockable rear swing section, glass door, and welded assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 9RU Double Swing-Section Wall Mount Data Rack, 19-inch Double Section Network Cabinet, Redback ZH.6609W
Technical Specifications
- Rack Capacity: 9RU
- Rack Width: 600mm
- Rack Depth: 600mm
- Rack Height: 500mm
- Mounting Format: 19-inch equipment
- Load Capacity: 60kg
- Construction: Welded steel frame
- Finish: Black powder-coated steel
- Front Door: Lockable tempered glass
- Rear Section: 150mm lockable swing section
- Protection Rating: IP20
- Included Accessories: Fixed shelf and cage nuts
- Standards: ANSI/EIA RS-310-D, DIN 41497 Part 1, IEC 297-2 and DIN 41494 Part 7
- Dimensions (H x L x W): 500mm x 600mm x 600mm
- Weight: 20.1 kg
Key Features
- Double-section wall-mount design for front and rear equipment access
- 150mm lockable rear swing section for maintenance and cable access
- Lockable tempered glass front door
- Fully assembled and welded construction
- Four adjustable 19-inch mounting uprights
- Removable side panels
- Top, bottom and rear cable-entry knock-outs
- Multiple earthing points
- Integrated fixed metal shelf
- Supplied with cage nuts
- Compatible with Redback quick-mount fan system
Professional Installation Requirements
- Wall mounting should be completed by a competent installer using fixings suitable for the wall construction and the installed equipment load. Confirm the mounting surface and fixings can safely support the cabinet and its contents before installation.
Applications
- Network switches and patch panels
- CCTV recorders and security equipment
- Audio-visual equipment
- Small servers and network appliances
- Telecommunications and structured cabling installations
- Commercial offices, education facilities and light industrial environments
Standards & Compliance
- AS 60529:2025 reference for the stated IP20 enclosure classification; the manufacturer also lists ANSI/EIA RS-310-D, DIN 41497 Part 1, IEC 297-2 and DIN 41494 Part 7 for rack compatibility.
Environmental Benefits
- Steel construction is recyclable at end of service life
- Powder-coated steel finish supports long service life and reduces replacement waste
- Welded construction and removable panels support repair, reconfiguration and continued use
- Rear swing access can simplify servicing and reduce unnecessary equipment replacement
Warranty Information
Redback Racks products are advertised with a 5-year manufacturer warranty against manufacturing defects; confirm the applicable terms with the authorised Australian distributor.
Available Now
Available through Redback Racks and authorised Australian distributors; availability may vary by distributor and location.
