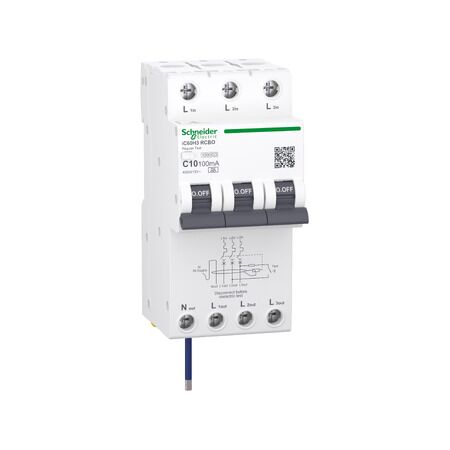

A9 iC60H3 3P+Ns C Curve 10A 100mA A RCBO | 10A Rated Current | C Curve Tripping | High Breaking Capacity | @Pack of 1 | by Clipsal
The A9 iC60H3 3P+Ns C Curve 10A 100mA A RCBO is designed for reliable circuit protection in commercial and residential applications. With a 10A rated current and a C Curve tripping characteristic, it effectively safeguards against overloads and earth leakage. Ideal for installation in electrical distribution boards, this RCBO ensures compliance with safety standards while enhancing electrical safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 10A 100mA A RCBO | 10A Rated Current | C Curve Tripping | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2910
Alternatively Known As: Clipsal RCBO, Acti9 iC60H3 RCBO, 3 Phase RCBO, 10A RCBO, SCHA9DC2910, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 10A
- Poles: 3P+Ns (Three phase plus neutral switched)
- Tripping curve: C Curve
- Residual current sensitivity: 100mA (Type A)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Acti9 iC60H3 series
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3P+Ns (Three phase plus neutral switched)
- C Curve tripping characteristic for general purpose protection
- 10A rated current
- 100mA residual current sensitivity (Type A)
- High breaking capacity: 10kA
- Acti9 iC60H3 series for reliable performance
- Compact modular design for easy installation
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for enhanced circuit protection
- Protection of lighting and power circuits against overloads, short circuits, and earth leakage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61009 – Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports compliance with modern energy management and safety standards
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 iC60H3 3P+Ns C Curve 10A 100mA A RCBO (SCHA9DC2910) is available for immediate purchase. Ideal for commercial, industrial, and residential switchboard applications requiring advanced circuit and earth leakage protection.
