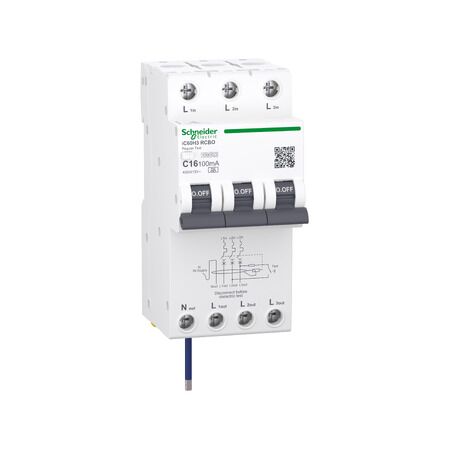

A9 iC60H3 3P+Ns C Curve 16A 100mA A RCBO | 10kA Breaking Capacity | Compact Design | by Clipsal
The A9 iC60H3 3P+Ns C Curve 16A 100mA A RCBO is designed for advanced circuit protection in commercial and residential switchboards. With a high breaking capacity of 10kA and a compact modular design, it ensures reliable performance against overloads and earth leakage. Ideal for licensed electricians, this RCBO enhances electrical safety and supports energy-efficient circuit management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns C Curve 16A 100mA A RCBO | 10kA Breaking Capacity | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHA9DC2916
Alternatively Known As: Clipsal RCBO, Acti9 iC60H3 RCBO, 3 Phase RCBO, 16A RCBO, SCHA9DC2916, Residual Current Circuit Breaker with Overcurrent Protection
Technical Specifications
- Rated current: 16A
- Poles: 3P+Ns (Three phase plus neutral switched)
- Tripping curve: C
- Residual current sensitivity: 100mA (Type A)
- Breaking capacity: 10kA
- Voltage: 400V AC
- Frequency: 50/60Hz
- Mounting: DIN rail
- Standard compliance: IEC/EN 61009-1
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Residual current breaker with overcurrent protection (RCBO)
- 3P+Ns (Three phase plus neutral switched)
- C Curve tripping characteristic for general purpose circuits
- 16A rated current
- 100mA residual current sensitivity (Type A)
- High breaking capacity: 10kA
- Acti9 iC60H3 series for reliable performance
- Compact modular design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards requiring advanced circuit protection
- Protection of lighting and power circuits against overload, short circuit, and earth leakage
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and electrical hazards
- Supports energy-efficient circuit management by preventing faults
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and residential switchboards requiring advanced circuit protection.
