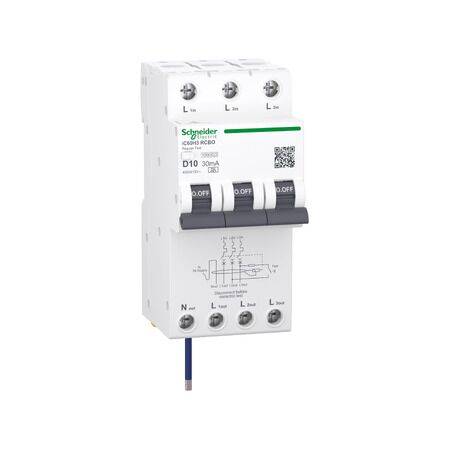

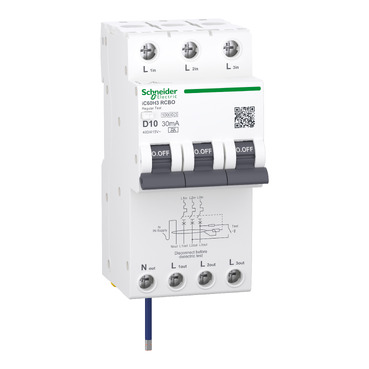

A9 iC60H3 3P+Ns D Curve 16A 30mA A RCBO | High Breaking Capacity | Compact DIN Rail Mount | by Clipsal
The A9 iC60H3 3P+Ns D Curve 16A 30mA A RCBO is designed for commercial and industrial applications, providing reliable overload, short-circuit, and earth leakage protection. With a high breaking capacity of 6kA and a compact DIN rail mount design, it ensures safety and efficiency in three-phase circuits. Ideal for switchboards and distribution boards, this device enhances electrical safety and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: A9 iC60H3 3P+Ns D Curve 16A 30mA A RCBO | High Breaking Capacity | Compact DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHA9DD1916
Alternatively Known As: Clipsal RCBO, 3 Phase RCBO, 16A D Curve RCBO, SCHA9DD1916, Residual Current Circuit Breaker with Overcurrent, A9 iC60H3 RCBO
Technical Specifications
- Rated current: 16A
- Poles: 3P+Ns (3 phase + neutral switched)
- Tripping curve: D (10-20 In)
- Earth leakage sensitivity: 30mA (Type A)
- Breaking capacity: 6kA
- Rated voltage: 400V AC
- Mounting: DIN rail
- Standards: IEC/EN 61009-1
- Operating temperature: -25°C to +60°C
- Dimensions (H x L x W): 85mm x 78mm x 72mm
- Weight: 0.45 kg
Key Features
- Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
- 3 pole + neutral switched (3P+Ns) configuration
- D curve for high inrush current protection
- 16A rated current
- 30mA earth leakage sensitivity (Type A)
- High breaking capacity for demanding environments
- Compact DIN rail mount design
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial switchboards
- Distribution boards in offices, factories, and retail environments
- Protection of three-phase circuits with neutral
- Suitable for applications requiring combined overload, short-circuit, and earth leakage protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces risk of electrical fires and faults, enhancing building safety
- Improves energy efficiency by quickly isolating faulty circuits
- Long service life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal A9 iC60H3 3P+Ns D Curve 16A 30mA A RCBO (SCHA9DD1916) is available for immediate purchase. Ideal for commercial and industrial switchboard applications requiring advanced circuit and earth leakage protection.
