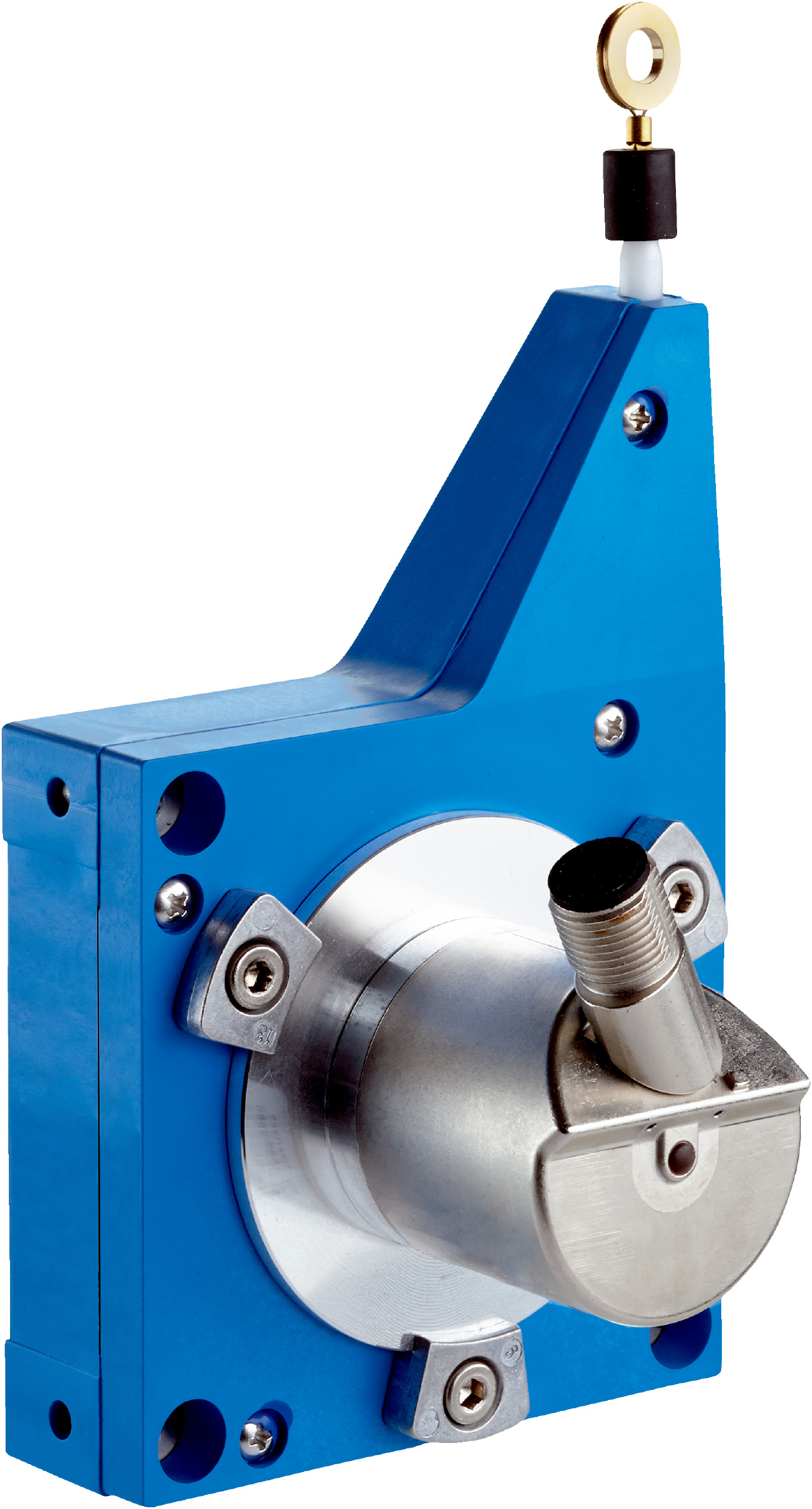

Absolute Encoder Wire Draw Sensor | SSI Communication | 0.03 mm Resolution | IP67 Rated | by SICK
The Absolute Encoder Wire Draw Sensor is designed for precise position measurement in industrial automation, featuring a high measurement accuracy of 0.03 mm resolution and robust IP67 enclosure rating. Ideal for safety-critical applications, this encoder ensures reliable feedback and long lifecycle performance, making it perfect for machine monitoring and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement range: 0 m to 3 m
- Resolution: 0.03 mm
- Repeatability: ≤ 0.2 mm
- Linearity: ≤ ± 2 mm
- Hysteresis: ≤ 0.4 mm
- Communication interface: SSI
- Supply voltage: 4.5 V DC to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Measuring wire material: Highly flexible stranded stainless steel (1.4401 V4A)
- Spring return force: 3.3 N to 4.4 N
- Operating temperature range: -30 °C to +70 °C
- Enclosure rating: IP50 (mechanic), IP66 (mounted mechanic), IP67 (encoder)
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.37 kg
Key Features
- Absolute encoder with SSI communication interface
- High measurement accuracy with 0.03 mm resolution
- Robust design with IP50 to IP67 enclosure ratings
- Long wire draw length of 3.2 m with 1,000,000 cycle life
- Programmable and configurable for versatile use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring reliable encoder feedback
- Machine monitoring and control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable materials and long lifecycle minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

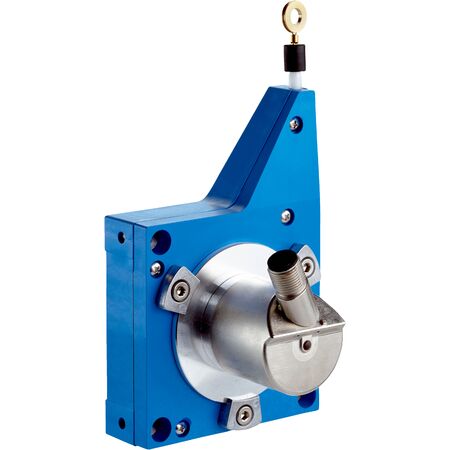

The SICK BCG08-A1NM0336 Absolute Encoder Wire Draw Sensor is available for immediate purchase, ideal for industrial automation and safety-critical applications.
