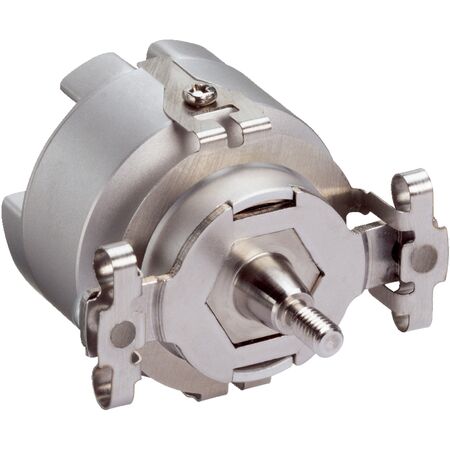

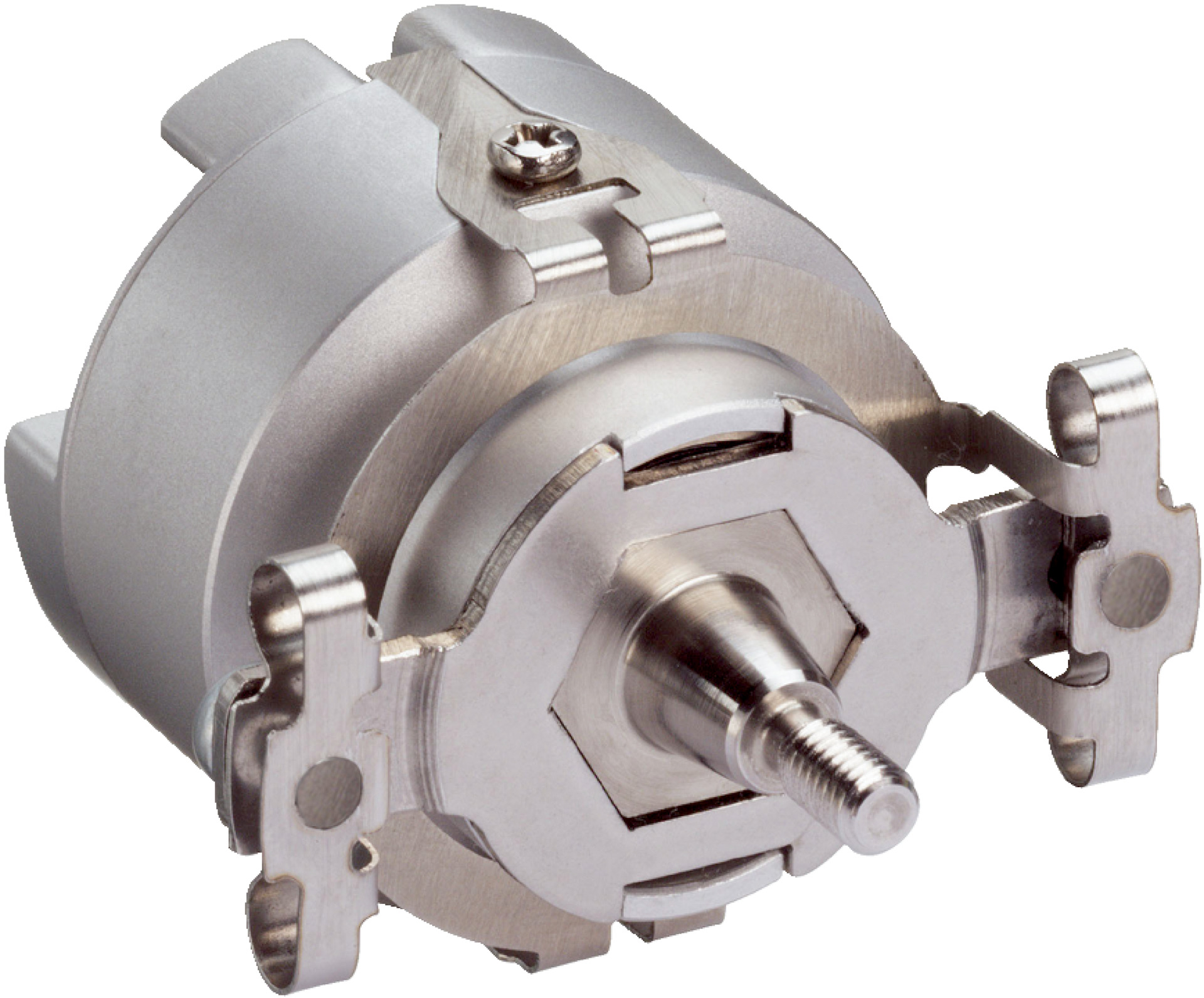

Absolute Rotary Encoder SKS36-HFA0-K02 HIPERFACE Interface High Speed 12,000 min⁻¹ SICK

BRAND: SICK
SKU: 1034095
$556.40 List price: $699.30
+ −
30 Days Return Electricians Unlock Trade Access
The Absolute Rotary Encoder SKS36-HFA0-K02 is designed for precise position measurement in industrial automation and robotics.

Alternatively Known As: Absolute rotary encoder, HIPERFACE encoder, SICK SKS36 encoder, rotary position sensor

Technical Specifications
  • Sine/cosine periods per revolution: 128
  • Total number of steps: 4,096
  • Measuring step: 2.5″ with 12-bit interpolation
  • Integral non-linearity: ±80″
  • Differential non-linearity: ±40″
  • Operating speed: ≤12,000 min⁻¹
  • Available memory area: 1,792 Byte
  • System accuracy: ±120″
  • Type of code: Binary
  • Connection type: Male connector, 8-pin, radial
  • Supply voltage: 7 V DC to 12 V DC (recommended 8 V DC)
  • Current consumption: 60 mA
  • Output frequency for sine/cosine signals: ≤65 kHz
  • Shaft version: Tapered shaft
  • Moment of inertia of rotor: 4.5 gcm²
  • Operating torque: 0.2 Ncm
  • Start up torque: +0.3 Ncm
  • Permissible static movement: ±0.1 mm radial, -0.4 mm to +0.2 mm axial
  • Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
  • Life of ball bearings: 3.6 x 10⁹ revolutions
  • Operating temperature range: –20 °C to +110 °C
  • Storage temperature range: –40 °C to +125 °C
  • Relative humidity: 90%, no condensation
  • Resistance to shocks: 100 g, 6 ms
  • Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
  • EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP50 with mating plug inserted
  • Dimensions (H x L x W): 36mm x 50mm x 36mm
  • Weight: 0.1 kg
Key Features
  • Absolute encoder with binary code output
  • HIPERFACE® communication interface
  • High operating speed up to 12,000 min⁻¹
  • High system accuracy of ±120″
  • Robust tapered shaft with spring mounting plate
  • Operating temperature range from –20 °C to +110 °C
  • IP50 enclosure rating with mating plug inserted
  • Long ball bearing life of 3.6 x 10⁹ revolutions
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper mounting, connection, and compliance with relevant regulations.
Applications
  • Industrial automation for precise position measurement
  • Robotics requiring high accuracy rotary encoders
  • Machine tools and manufacturing equipment
  • Safety-related systems requiring reliable feedback
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Long operational life reduces waste and replacement frequency
  • Low current consumption of 60 mA conserves energy
  • Robust design minimizes environmental impact through durability
Warranty Information

Warranty terms as per SICK standard policy; typically 12 months from date of purchase.

Available Now

The SICK SKS36-HFA0-K02 absolute encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring precise rotary position feedback.
