Trade Discount 16%

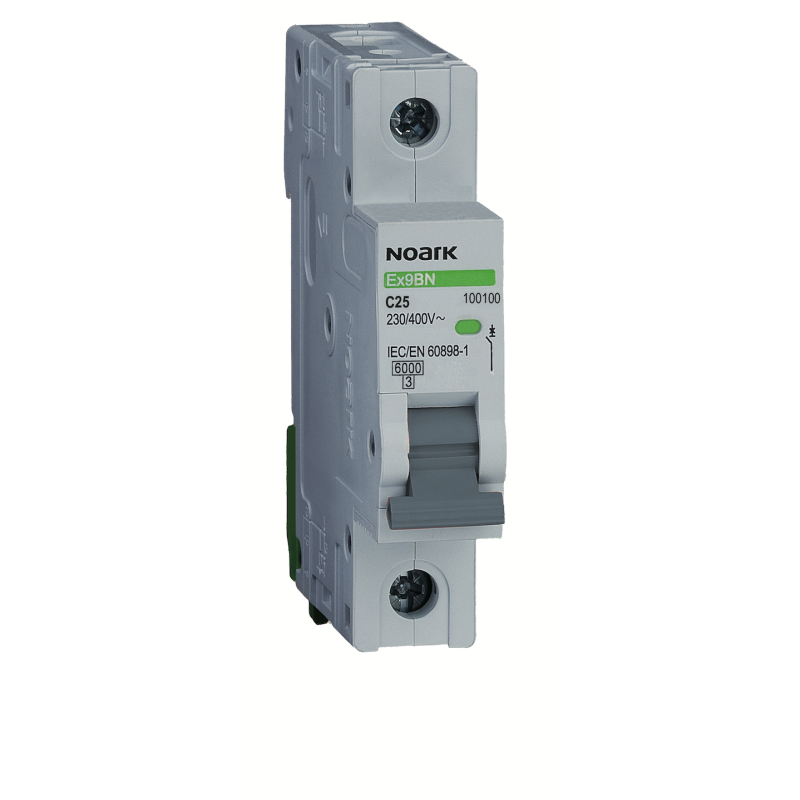

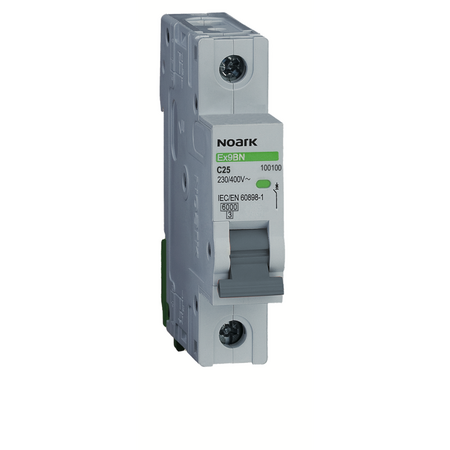

AC MCB 6kA 1P C 25A | Short Circuit Protection | IEC/EN 60898-1 Compliant | Noark
AC MCB 6kA 1P C 25A offers reliable short circuit protection with a 6kA breaking capacity and compliance with IEC/EN 60898-1 standards. Ideal for residential, commercial, and industrial electrical distribution, it ensures safety and efficiency in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AC MCB 6kA 1P C 25A
Brand: Noark
SKU: 100100
Alternatively Known As: Miniature Circuit Breaker, MCB 6kA, Noark Circuit Breaker, AC MCB 25A
Technical Specifications
- Compliance with IEC/EN 60898-1
- Short circuit breaking capacity: 6kA
- Pole versions: 1 to 3 poles
- Tripping curves: C and D
- Rated current: up to 63A
- Operational voltage: 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Miniature Circuit Breakers according to IEC/EN 60898-1
- Rated short circuit breaking capacity Icn 6kA
- Available in 1 up to 3-pole versions
- Tripping curve C and D options
- Rated current up to 63A
- Rated operational voltage 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Wide range of accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution
- Commercial electrical panels
- Industrial electrical protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Supports energy-efficient electrical system safety
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark AC MCB 6kA 1P C 25A is available for immediate purchase, ideal for electrical protection in residential, commercial, and industrial installations.
