AC MCB 6kA 1P C 32A | IEC/EN 60898-1 Compliant | Short Circuit Protection | Noark
AC MCB 6kA 1P C 32A offers reliable short circuit protection with IEC/EN 60898-1 compliance—ideal for residential, commercial, and industrial electrical systems. Built for safety and efficiency, it supports rated currents up to 63A and operational voltages of 240/415V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

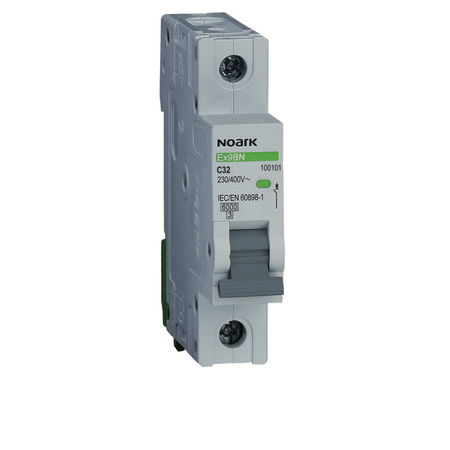

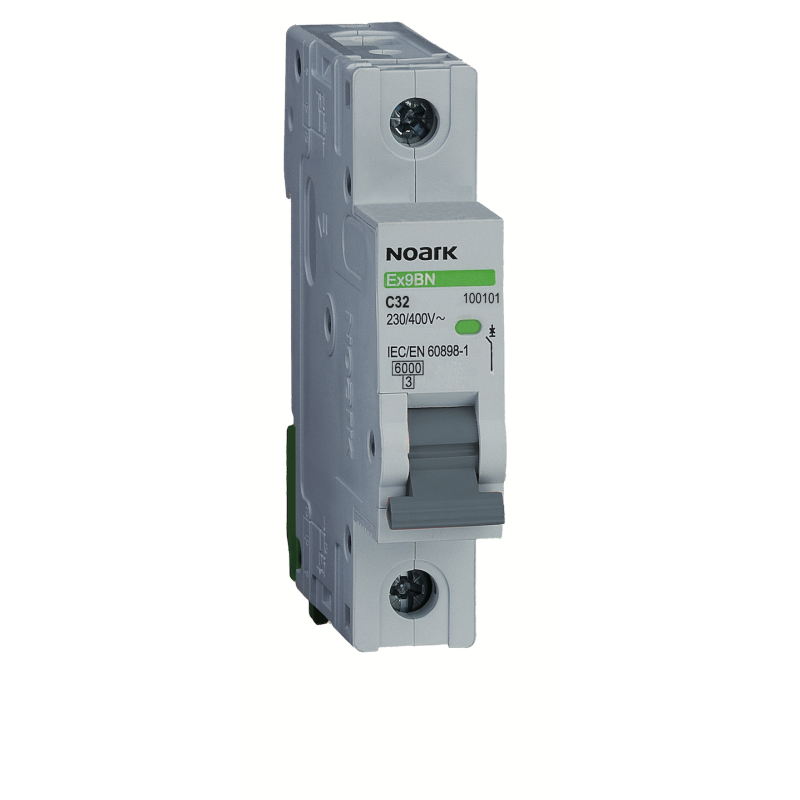

Product Name/Title: AC MCB 6kA 1P C 32A
Brand: Noark
SKU: 100101
Alternatively Known As: Miniature Circuit Breaker, MCB 6kA, Noark Circuit Breaker, AC MCB 32A
Technical Specifications
- Compliance with IEC/EN 60898-1
- Short circuit breaking capacity: 6kA
- Pole versions: 1 to 3 poles
- Tripping curves: C and D
- Rated current: up to 63A
- Operational voltage: 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Miniature Circuit Breakers according to IEC/EN 60898-1
- Rated short circuit breaking capacity Icn 6kA
- Available in 1 up to 3-pole versions
- Tripping curve options C and D
- Rated current up to 63A
- Rated operational voltage 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Wide range of accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution
- Commercial electrical panels
- Industrial electrical protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Supports energy-efficient electrical system safety
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark AC MCB 6kA 1P C 32A is available for immediate purchase, ideal for electrical protection in residential, commercial, and industrial installations.
