AC MCB 6kA 1P C 63A | IEC/EN 60898-1 Compliant | Short Circuit Protection | Noark
AC MCB 6kA 1P C 63A offers reliable short circuit protection and compliance with IEC/EN 60898-1—ideal for residential, commercial, and industrial electrical systems. Built for safety and efficiency, it supports up to 63A rated current and is available in multiple pole versions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

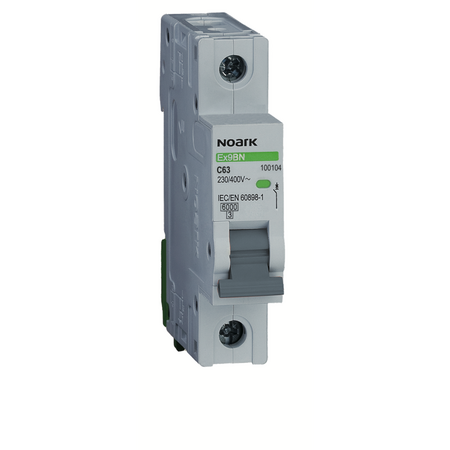

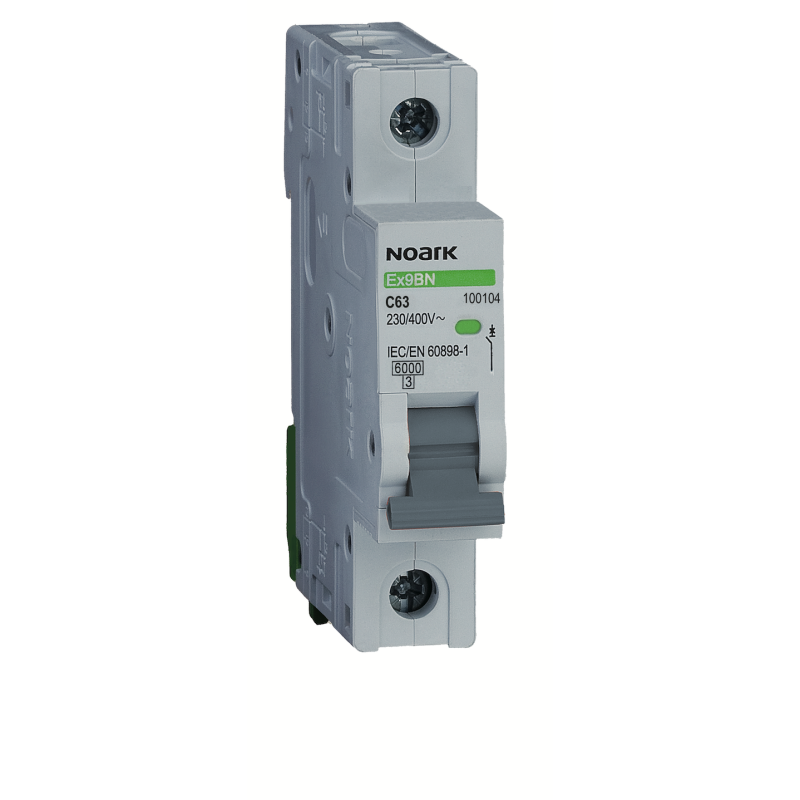

Product Name/Title: AC MCB 6kA 1P C 63A
Brand: Noark
SKU: 100104
Alternatively Known As: Miniature Circuit Breaker, MCB 6kA, Noark Circuit Breaker, AC MCB 63A
Technical Specifications
- Compliance with IEC/EN 60898-1
- Short circuit breaking capacity: 6kA
- Pole versions: 1 to 3 poles
- Tripping curves: C and D
- Rated current: up to 63A
- Operational voltage: 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- Miniature Circuit Breakers according to IEC/EN 60898-1
- Rated short circuit breaking capacity Icn 6kA
- Available in 1 up to 3-pole versions
- Tripping curve C and D options
- Rated current up to 63A
- Rated operational voltage 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
- Wide range of accessories available
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution
- Commercial electrical panels
- Industrial control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Supports energy-efficient electrical system safety
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark AC MCB 6kA 1P C 63A is available for immediate purchase, ideal for electrical protection in residential, commercial, and industrial installations.
