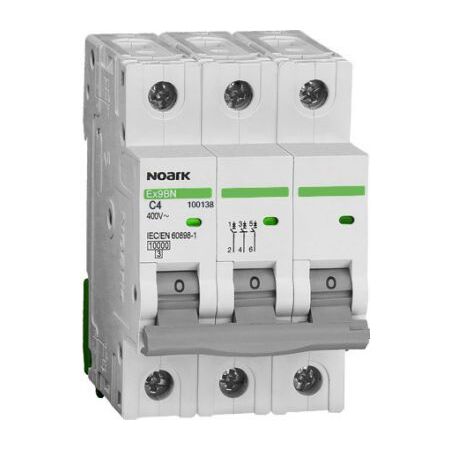

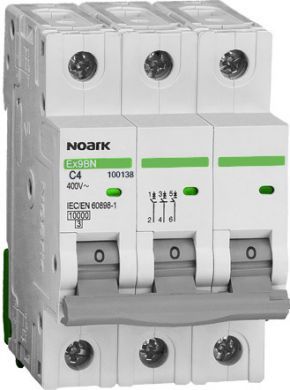

AC MCB 6kA 3P C 4A | Short Circuit Protection | IEC/EN 60898-1 Compliant | 240/415V AC by Noark

BRAND: Noark
SKU: 100138
$22.40 List price: $26.70
+ −
30 Days Return Delivery Options
AC MCB 6kA 3P C 4A offers reliable short circuit protection with a 6kA breaking capacity and compliance with IEC/EN 60898-1 standards. Ideal for residential, commercial, and industrial electrical distribution, it ensures safety and efficiency in your electrical systems.

Product Name/Title: AC MCB 6kA 3P C 4A

Brand: Noark

SKU: 100138

Alternatively Known As: Miniature Circuit Breaker, MCB 6kA, Noark Circuit Breaker, AC MCB 3 Pole

Technical Specifications
  • Compliance with IEC/EN 60898-1
  • Short circuit breaking capacity: 6kA
  • Pole versions: 1 to 3 poles
  • Tripping curves: C and D
  • Rated current: up to 63A
  • Operational voltage: 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.2 kg
Key Features
  • Miniature Circuit Breakers according to IEC/EN 60898-1
  • Rated short circuit breaking capacity Icn 6kA
  • Available in 1 up to 3-pole versions
  • Tripping curve C and D options
  • Rated current up to 63A
  • Rated operational voltage 240/415V AC, 72V DC per pole (1P, 2P), 48V DC per pole (3P, 4P)
  • Wide range of accessories available
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
  • Residential electrical distribution
  • Commercial electrical panels
  • Industrial control systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Protects electrical circuits to prevent damage and reduce fire risk
  • Supports energy-efficient electrical system safety
Warranty Information

Standard manufacturer warranty of 1 year against defects.

Available Now

The Noark AC MCB 6kA 3P C 4A is available for immediate purchase, ideal for electrical protection in residential, commercial, and industrial installations.
