Trade Discount 24%

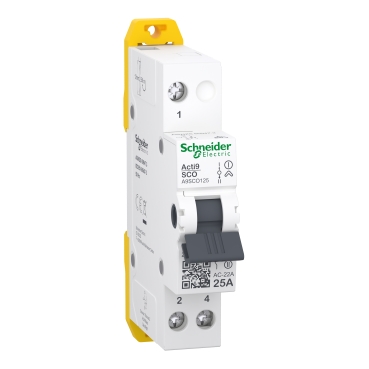

Acti9 Changeover Switch 1P 25A 230/240VAC DIN Rail Clipsal

BRAND: Clipsal
SKU: A9SCO125
$50.70 List price: $66.30
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Acti9 1P Changeover Switch, rated 25A for 230/240VAC with DIN Rail mounting. Compliant with AS/NZS 60947-3.

Alternatively Known As: Acti9 Changeover Switch

Technical Specifications
  • Rated Operational Current: 25 A
  • Rated Operational Voltage: 230/240 V
  • Control Type: 3-position toggle
  • Mounting Support: 35 mm DIN rail
  • Connections: Screw terminals 1-10 mm²
  • Electrical Durability: 7000 cycles
  • Mechanical Durability: 10000 cycles
  • IP Degree of Protection: IP20/IP40 inside enclosure
  • Ambient Temperature: -25 to 60 °C
  • Dimensions (H x L x W): 85mm x 44mm x 17.5mm
  • Weight: 0.1 kg
Key Features
  • 3-position toggle control
  • Easy mounting on 35 mm DIN rail
  • Compact design with 17.5 mm width
  • Environmental compliance with RoHS
Professional Installation Requirements
  • Installation should be performed by a qualified electrician, following AS/NZS 60947-3 standards.
Applications
  • Switching between power sources in buildings
  • Industrial control panels
  • Residential electrical systems
Standards & Compliance
  • AS/NZS 60947-3
Environmental Benefits
  • RoHS compliant
  • Mercury and toxic heavy metal free
Warranty Information

Refer to Clipsal's standard warranty policy for specific terms.

Available Now

Available through authorised Australian distributors.
