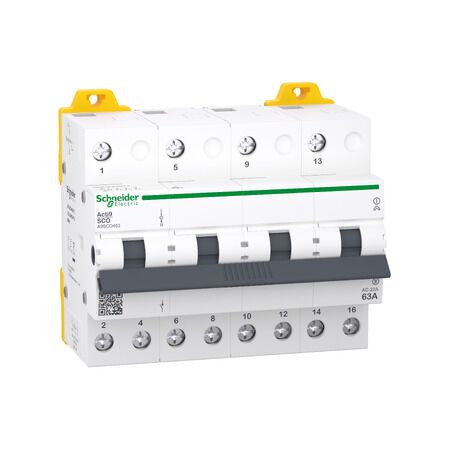

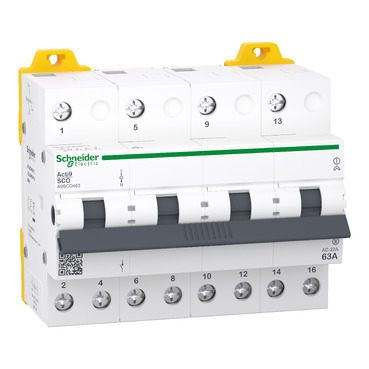

Acti9 Changeover Switch 4P 63A | Manual Operation | DIN Rail Mountable | IP20 Rated | @Pack of 1 | by Clipsal
The Acti9 Changeover Switch 4P 63A is designed for safe and reliable manual transfer between power sources, making it ideal for residential and commercial switchboards. With a robust 63A current rating and compact DIN rail mounting, this switch ensures efficient power handling and clear ON/OFF indication for operational safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9 Changeover Switch 4P 63A | Manual Operation | DIN Rail Mountable | IP20 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9SCO463
Alternatively Known As: Changeover Switch, Manual Transfer Switch, 4 Pole Changeover, Acti9 63A Switch, Generator Changeover Switch
Technical Specifications
- Rated current: 63A
- Number of poles: 4 (Three-phase + Neutral)
- Rated operational voltage: 415V AC
- Mounting: DIN rail
- Switching mode: Manual
- Standards: IEC 60947-3
- IP20 protection (when installed in enclosure)
- Mechanical durability: 10,000 operations
- Dimensions (H x L x W): 85mm x 75mm x 72mm
- Weight: 0.7 kg
Key Features
- 4 pole (4P) design for three-phase and neutral switching
- 63A current rating for robust power handling
- Manual changeover operation for safe power source transfer
- Compact DIN rail mountable for easy installation
- Clear ON/OFF indication for operational safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial switchboards
- Backup generator changeover
- Industrial power distribution
- Manual transfer between mains and alternative power sources
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient use of backup power, reducing downtime and energy waste.
- Durable construction ensures long service life, minimizing replacement frequency.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Acti9 Changeover Switch 4P 63A (SCHA9SCO463) is available for immediate purchase. Ideal for switchboards requiring safe and reliable manual transfer between power sources.
