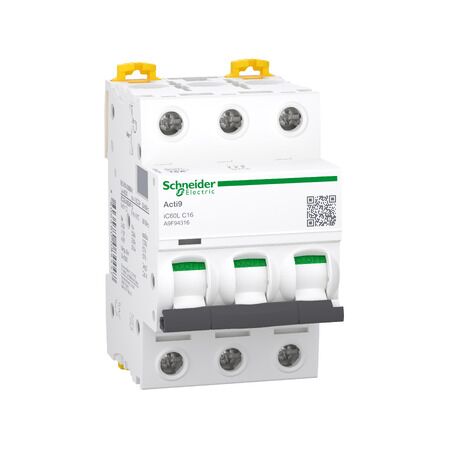

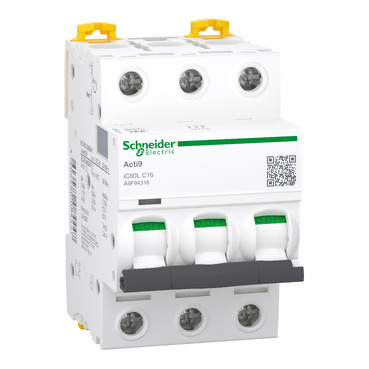

ACTI9 IC60L 3P 16A C MCB | 6kA Breaking Capacity | DIN Rail Mount | Padlockable Toggle | @Pack of 1 | by Clipsal
The ACTI9 IC60L 3P 16A C MCB is a reliable miniature circuit breaker designed for effective circuit protection in commercial, industrial, and residential applications. With a high breaking capacity of 6kA and a C curve tripping characteristic, it ensures safety and compliance with AS/NZS standards. Quick DIN rail mounting and a padlockable toggle enhance its usability, making it an essential component for electrical distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ACTI9 IC60L 3P 16A C MCB | 6kA Breaking Capacity | DIN Rail Mount | Padlockable Toggle | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9F94316
Alternatively Known As: 3 Pole MCB, 16A Circuit Breaker, Clipsal IC60L, SCHA9F94316, Acti9 Miniature Circuit Breaker, 3P 16A MCB
Technical Specifications
- Rated current: 16A
- Number of poles: 3
- Tripping curve: C
- Breaking capacity: 6kA at 230/400V AC
- Rated voltage: 400V AC
- Mounting: DIN rail
- Toggle position indication: ON/OFF
- Padlockable: Yes
- Standards: IEC 60898-1, AS/NZS 60898.1
- Dimensions (H x L x W): 85mm x 78mm x 54mm
- Weight: 0.35 kg
Key Features
- 3 pole (3P) miniature circuit breaker
- 16A rated current
- C curve tripping characteristic for general protection
- High breaking capacity (up to 6kA)
- Quick and easy DIN rail mounting
- Padlockable toggle for safety
- Clear ON/OFF indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Commercial and industrial electrical distribution boards
- Residential switchboards for circuit protection
- Panel boards in infrastructure and public buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60898.1 – Circuit-breakers for overcurrent protection
Environmental Benefits
- Enables safe and efficient electrical distribution, reducing risk of fire and electrical faults.
- Long operational life reduces replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for use in commercial, industrial, and residential switchboards requiring reliable circuit protection.
