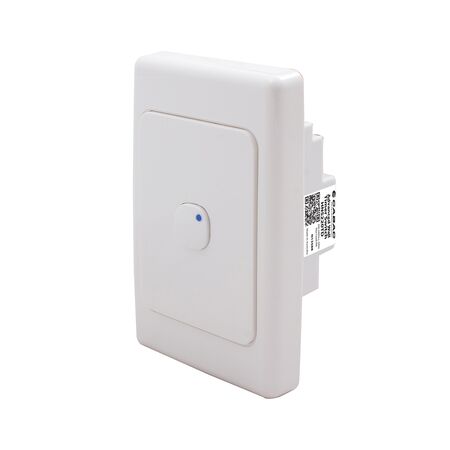

Advanced Wall Timer Switch 230V 10A | Timer & Restart Modes | High Power
Advanced wall timer switch with 230V 10A capacity and dual timer modes—ideal for motors, fans, and pumps in pools and spas. Built for high power applications, with easy programming and compatibility with Clipsal and HPM wall plates.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Advanced Wall Timer Switch 230V 10A | Timer & Restart Modes | High Power
SKU: HNS220TD
Alternatively Known As: Wall Timer Switch, Motor Timer Switch, Restart Timer Switch, Pool Pump Timer, Fan Timer Switch, CABAC Timer Switch
Technical Specifications
- Voltage: 230VAC
- Current Rating: 10A
- Motor Load Switching Capacity: 8A
- Timer Modes: Timer switch and Restart timer switch
- Time Programming: Up to 15 hours
- Load Compatibility: Incandescent, 240V Halogen, Fluorescent (electronic and iron core ballast), Electronic transformer, Compact Fluorescent, LED, Wirewound Transformer, Fan Motors, Heating Elements
- Status Indicator: Blue LED
- Installation: Fits one gang Australian face plate style switch mechanism
- Dimensions (H x L x W): 115mm x 40mm x 70mm
- Weight: 0.2 kg
Key Features
- Supports Timer and Restart Timer modes
- Single tap to turn power off or reset timer depending on mode
- Blue LED indicates device status
- Fits one gang Australian face plate style switch mechanism
- Easy time-out period programming up to 15 hours
- Can switch 8A of motor load
- Programmable Normally Open or Normally Closed
- Compatible with Clipsal or HPM wall plates
- Supplied with choice of buttons and face plate
- Designed for high power applications
- Perfect for retrofitting existing installations
- Designed, engineered and manufactured in Australia
Professional Installation Requirements
- Must be installed by a qualified electrical contractor or similarly qualified person. Mains power must be disconnected at the circuit breaker before installation.
Applications
- High power applications such as motors, fans, and pumps for pools and spas
- Replacement for Clipsal 2031VETR3 and 31VETR3 timer switches
- Suitable for residential and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps reduce energy consumption by automatically switching off devices after set time
- Supports efficient operation of motors and pumps, reducing unnecessary power use
Warranty Information
Standard manufacturer warranty applies. Please refer to product manual for details.
Available Now
The CABAC Advanced Wall Timer Switch HNS220TD is available now for immediate purchase. Ideal for high power electrical applications in residential and commercial settings.
