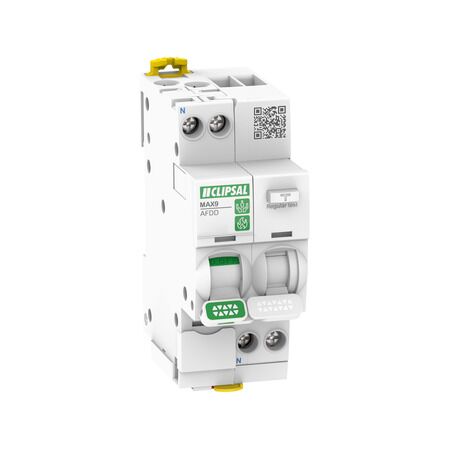

AFDD Circuit Breaker 20A 30mA C Curve IP20 Clipsal

BRAND: Clipsal
SKU: CLIMX9A3220
$228.20 List price: $284.40
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal MX9 AFDD, 20A, C curve, 30mA sensitivity, IP20. Detects arc faults to reduce fire risk in residential and commercial installations.
Technical Specifications
  • Rated current: 20A at 30°C
  • Rated operational voltage: 240V AC 50Hz
  • Mechanical durability: 20,000 cycles
  • Electrical durability: 10,000 cycles AC 50Hz
  • IP Rating: IP20
  • Ambient air temperature for operation: -25 to 70°C
  • Rated insulation voltage: 440V AC 50Hz
  • Overvoltage category: III
  • Tropicalisation: Severity B conforming to IEC 60068-2-30
  • Dimensions (H x L x W): 91mm x 75mm x 36mm
  • Weight: 0.237 kg
Key Features
  • All-in-one arc fault detection and residual current circuit breaker (AFDD+RCBO).
  • C Curve with a breaking capacity of 6000A.
  • Instantaneous earth-leakage protection with a sensitivity of 30mA.
  • Toggle control type with local signalling for ON, OFF, and fault trip.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Circuit protection in various electrical installations
Standards & Compliance
  • Complies with AS/NZS 61009.1 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and free from mercury.
Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for circuit protection in residential and commercial spaces.

MX9A3220 (MX9A3220, 210 Kb) [Download]
