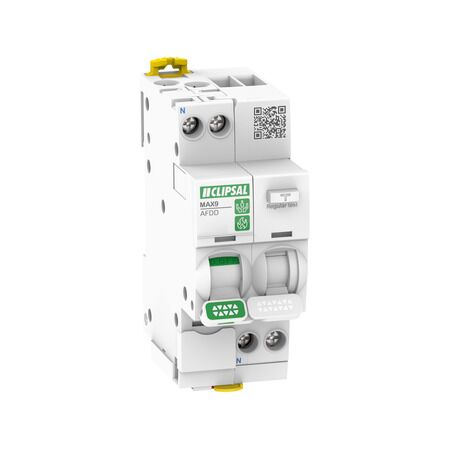

AFDD RCBO 1P+N 25A 30mA C Curve 6kA IP20 DIN Rail Clipsal

BRAND: Clipsal
SKU: CLIMX9A3225
$228.20 List price: $284.40
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal MX9 AFDD RCBO, 25A, C curve, 30mA sensitivity, 6kA breaking capacity to AS NZS 61009.1. DIN-rail mount fire-risk circuit protection.
Technical Specifications
  • Rated current: 25A at 30°C
  • Rated operational voltage: 240V AC 50Hz
  • Control type: Toggle
  • Local signalling: ON, OFF, fault trip
  • Mounting mode: Clip-on, DIN rail
  • Mechanical durability: 20,000 cycles
  • Electrical durability: 10,000 cycles AC 50Hz
  • IP degree of protection: IP20
  • Ambient air temperature for operation: -25...70°C
  • Earth-leakage protection class: Type A
  • Trip unit technology: Thermal-magnetic
  • Rated insulation voltage: 440V AC 50Hz
  • Overvoltage category: III
  • Dimensions (H x L x W): 91mm x 75mm x 36mm
  • Weight: 0.24 kg
Key Features
  • Arc Fault Detection (AFDD) integrated with RCBO for enhanced safety.
  • 1P+N configuration with a breaking capacity of 6000A.
  • C Curve with 30mA earth-leakage sensitivity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and other living spaces
  • Commercial: Offices, retail, and hospitality environments
  • General: Electrical distribution and fire prevention applications
Standards & Compliance
  • Complies with AS/NZS 61009.1 for safety and performance.
Environmental Benefits
  • Compliant with EN/IEC 62606 and AS/NZS 61009.1 standards.
Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for residential and commercial electrical systems.

MX9A3225 (MX9A3225, 210 Kb) [Download]
