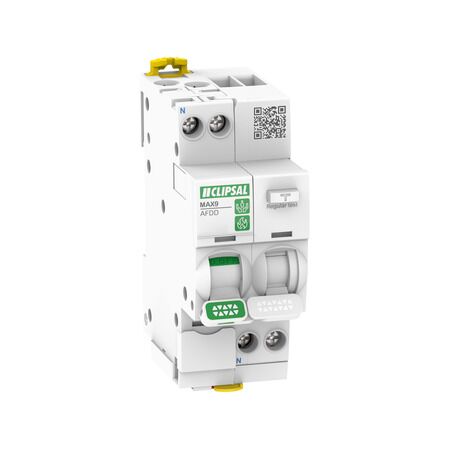

AFDD RCBO 1P+N 6A 30mA C Curve 6kA IP20 Clipsal
Clipsal MX9 AFDD RCBO combines 6A rating, 30mA earth-leakage sensitivity and 6kA breaking capacity to AS NZS 61009.1. For fire-risk circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 6A
- Rated operational voltage: 240V AC 50Hz
- Breaking capacity: 6000A
- Earth-leakage sensitivity: 30mA
- Poles description: 1P + N
- Control type: toggle
- Mounting mode: clip-on
- IP degree of protection: IP20
- Mechanical durability: 20000 cycles
- Electrical durability: 10000 cycles AC 50Hz
- Ambient air temperature for operation: -25...70 °C
- Rated insulation voltage: 440V AC 50Hz
- Overvoltage category: III
- Dimensions (H x L x W): 91mm x 75mm x 36mm
- Weight: 0.237 kg
Key Features
- Arc fault detection for enhanced safety.
- Integrated earth-leakage protection.
- Thermal-magnetic trip unit technology.
- Instantaneous earth-leakage protection time delay.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical distribution and fire prevention
Standards & Compliance
- Complies with AS/NZS 61009.1 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives, ensuring reduced environmental impact.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for electrical distribution and fire prevention applications.
