AFM60S-TBKC262144 | Safety encoders

BRAND: SICK
SKU: 1149876
$2,750.00 List price: $3,456.50
+ −
30 Days Return Delivery Options

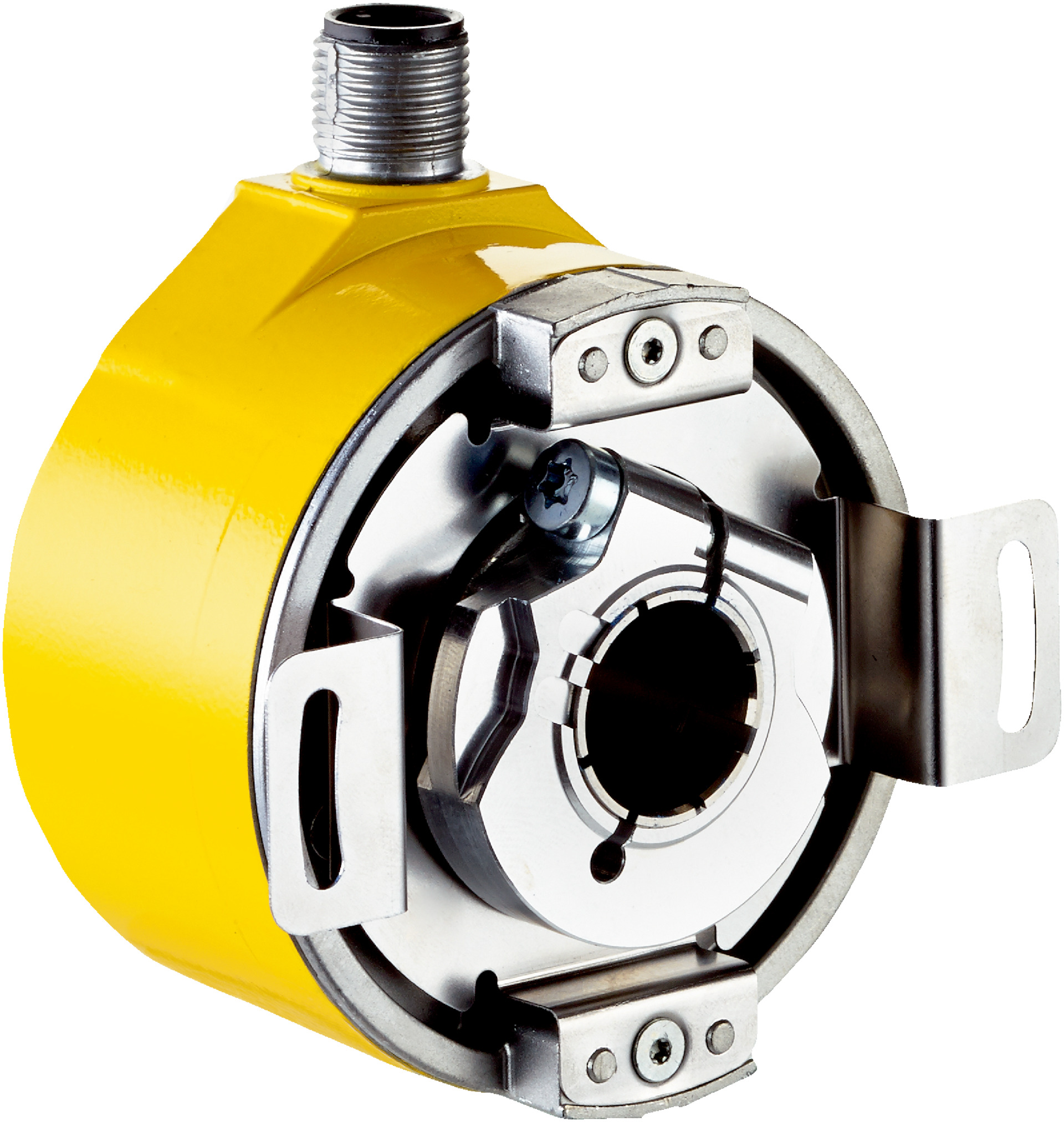

The SICK AFM60S-TBKC262144 safety encoder offers high precision position feedback with SIL 3 safety integrity and PL e performance level, ideal for demanding industrial safety applications.

Product Name/Title: AFM60S-TBKC262144 | Safety encoders

Brand: SICK

SKU: 1149876

Alternatively Known As: Safety rotary encoder, SIL 3 encoder, high resolution safety encoder, industrial safety encoder

Technical Specifications
  • Safety integrity level: SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level: PL e (EN ISO 13849-1)
  • Category: 3 and 4 (EN ISO 13849-1)
  • Mean probability of dangerous failure per hour (PFH): 5.5 x 10^-9 at 40°C
  • Mission time: 20 years (EN ISO 13849-1)
  • Safety-related accuracy: 0.09° category 3, 0.35° category 4
  • Max resolution: 262,144 steps per revolution x 4,096 revolutions (18 bit x 12 bit)
  • Error limits G: 0.05°
  • Repeatability standard deviation: 0.002°
  • Communication interface: SSI + Sin/Cos
  • Initialization time: 2 seconds
  • Position forming time: < 1 µs
  • Code type: Gray
  • Clock frequency: 100 kHz to ≤ 1 MHz
  • Supply voltage: 4.5 to 30 V
  • Power consumption: 0.7 W (without load)
  • Connection type: Male connector, M12, 12-pin, radial
  • Mechanical design: Through hollow shaft with 8 mm diameter and feather key groove
  • Housing material: Aluminum die cast
  • Operating temperature range: -30°C to +85°C
  • Enclosure rating: IP65
  • Operating speed: ≤ 6,000 min⁻¹
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.25 kg
Key Features
  • Safety integrity level SIL 3 (IEC 61508, IEC 61800-5-3)
  • Performance level PL e and category 3 and 4 compliance (EN ISO 13849-1)
  • High resolution with 262,144 steps per revolution and 4,096 revolutions
  • Robust mechanical design with through hollow shaft and stainless steel shaft
  • IP65 rated enclosure for protection against dust and water
  • Low operating and start-up torque for efficient operation
  • Short-circuit and reverse polarity protection
  • Fast initialization time of 2 seconds and position forming time under 1 microsecond
  • Communication via SSI interface with Sin/Cos output
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety encoder integration and electrical safety standards.
Applications
  • Industrial automation requiring high safety and precision
  • Safety-related motion control systems
  • Robotics and machinery with safety performance level PL e
  • Position and speed feedback in hazardous environments
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption of 0.7 W supports energy-efficient operation
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.

Available Now

The SICK AFM60S-TBKC262144 safety encoder is available for immediate purchase, ideal for industrial safety and automation applications.
