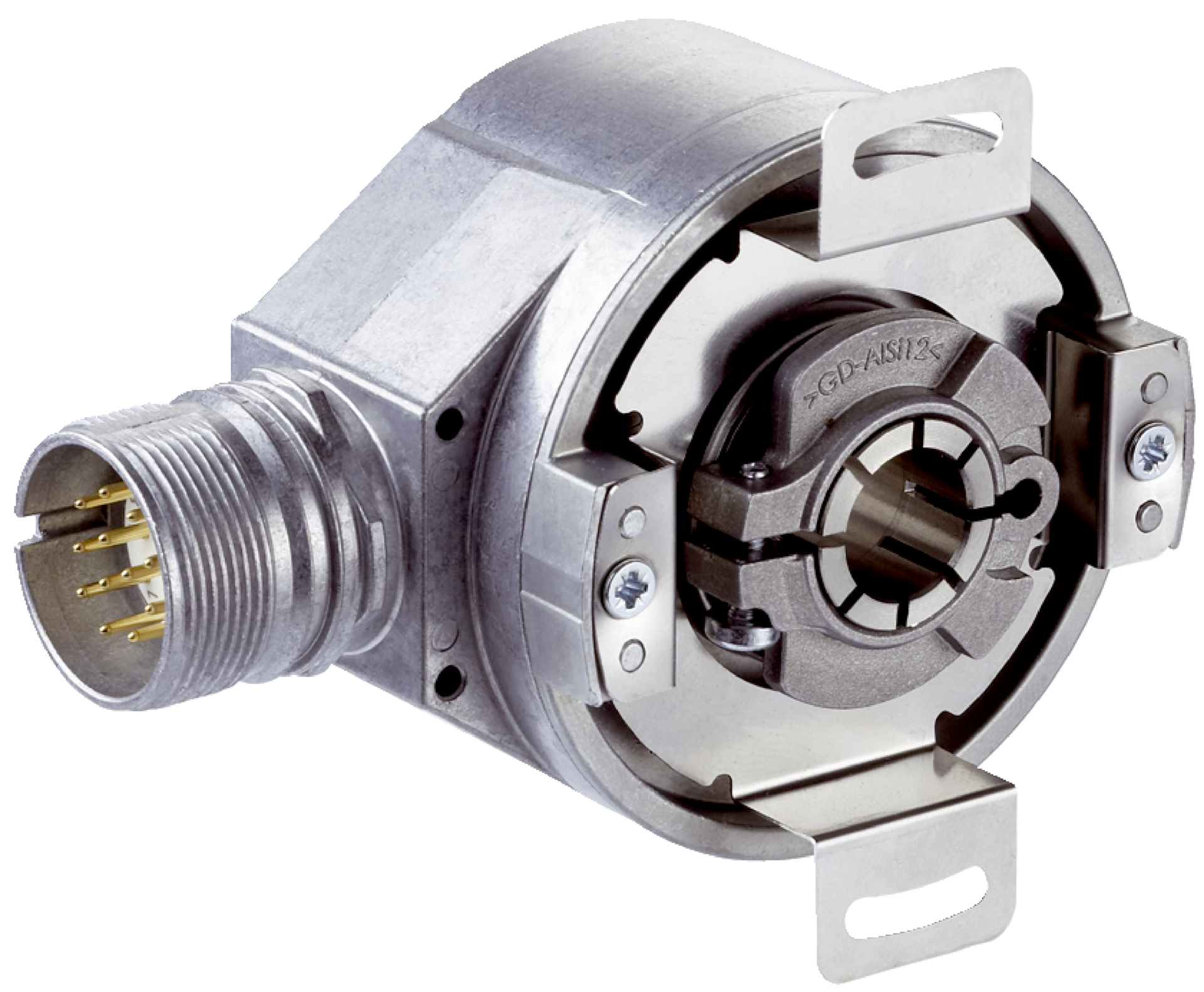

AFS60B-TDAA016384 | Absolute encoders

BRAND: SICK
SKU: 1063514
$1,666.10 List price: $2,094.10
+ −
30 Days Return Electricians Unlock Trade Access
The SICK AFS60B-TDAA016384 absolute encoder offers high precision position feedback with a robust design, suitable for demanding industrial applications requiring reliable and accurate rotary position measurement.

Product Name/Title: AFS60B-TDAA016384 | Absolute encoders

Brand: SICK

SKU: 1063514

Alternatively Known As: Rotary encoder, SSI absolute encoder, high resolution encoder, through hollow shaft encoder

Technical Specifications
  • MTTFD (mean time to dangerous failure): 250 years (EN ISO 13849-1)
  • Number of steps per revolution: 16,384 (14 bit)
  • Error limits G: 0.05°
  • Repeatability standard deviation σr: 0.002°
  • Communication interface: SSI
  • Initialization time: 50 ms
  • Position forming time: < 1 µs
  • Code type: Gray
  • Clock frequency: ≤ 2 MHz
  • Supply voltage: 4.5 to 32 V
  • Power consumption: ≤ 0.7 W (without load)
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 10 mm
  • Start up torque: < 0.8 Ncm (+20 °C)
  • Operating torque: < 0.6 Ncm (+20 °C)
  • Operating speed: ≤ 9,000 min⁻¹
  • Enclosure rating: IP65 shaft side, IP67 housing side
  • Operating temperature range: –40 °C to +100 °C
  • Resistance to shocks: 70 g, 6 ms
  • Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 40mm x 60mm
  • Weight: 0.2 kg
Key Features
  • High resolution with 16,384 steps per revolution (14 bit)
  • Robust through hollow shaft mechanical design with stainless steel shaft
  • Fast initialization time of 50 ms and position forming time under 1 µs
  • Communication via SSI interface with adjustable code sequence parameters
  • IP65 rated shaft side and IP67 rated housing side for harsh environments
  • Wide operating temperature range from -40 °C to +100 °C
  • Low power consumption ≤ 0.7 W with reverse polarity protection
  • High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
  • Industrial automation for precise position measurement
  • Robotics and motion control systems
  • Machine tool feedback and control
  • Conveyor and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage in industrial systems
  • Durable materials and long bearing life minimize waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK AFS60B-TDAA016384 absolute encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
