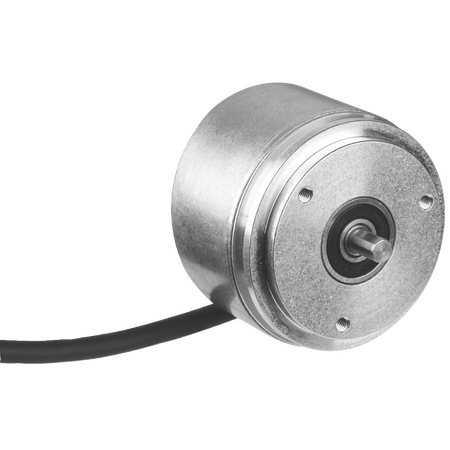

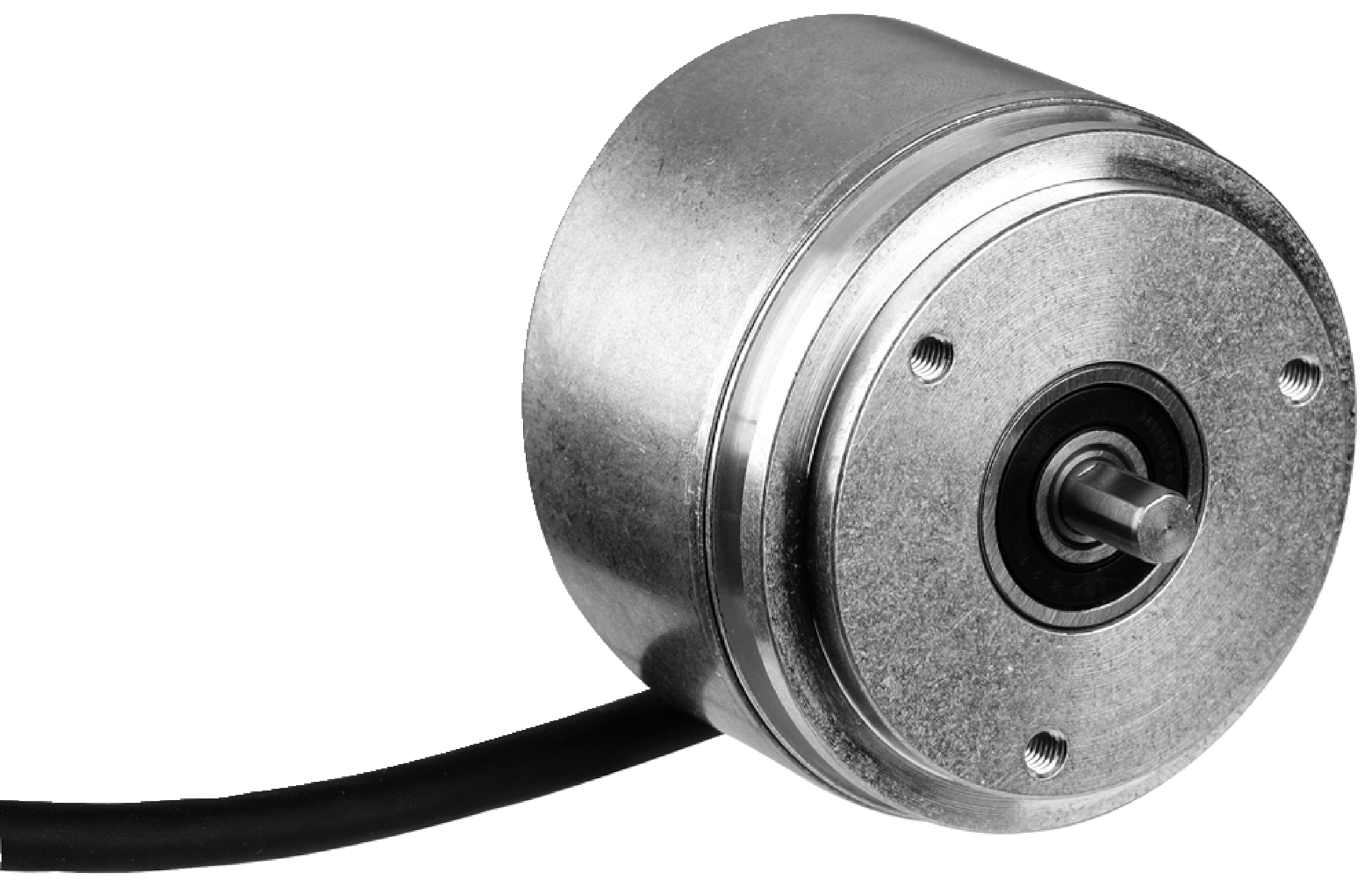

AFS60E-S1AK004096 | Absolute encoders
The SICK AFS60E-S1AK004096 absolute encoder offers high precision and reliability with a 12-bit resolution, robust aluminum housing, and SSI communication interface, ideal for industrial automation and machinery requiring accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AFS60E-S1AK004096 | Absolute encoders
Brand: SICK
SKU: 1037627
Alternatively Known As: Rotary encoder, Absolute rotary encoder, SSI encoder, Position encoder, Shaft encoder
Technical Specifications
- Resolution: 4,096 steps per revolution (12 bit)
- Error limit: 0.2°
- Repeatability standard deviation: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: ≤ 1 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start-up torque: < 0.5 Ncm at 20°C
- Operating torque: < 0.3 Ncm at 20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: 0°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust mechanical design with solid shaft and servo flange
- Stainless steel shaft with flat for secure mounting
- High operating speed up to 9,000 min⁻¹
- Low start-up torque (< 0.5 Ncm) and operating torque (< 0.3 Ncm)
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with adjustable code sequence
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft positioning
- Machine tools requiring high-resolution feedback
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60E-S1AK004096 absolute encoder is available for immediate purchase, ideal for industrial automation and precision machinery requiring reliable position feedback.
