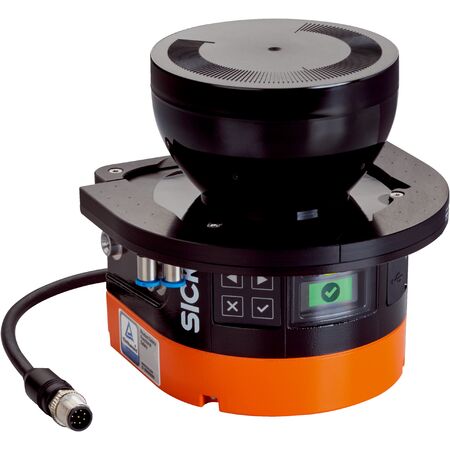

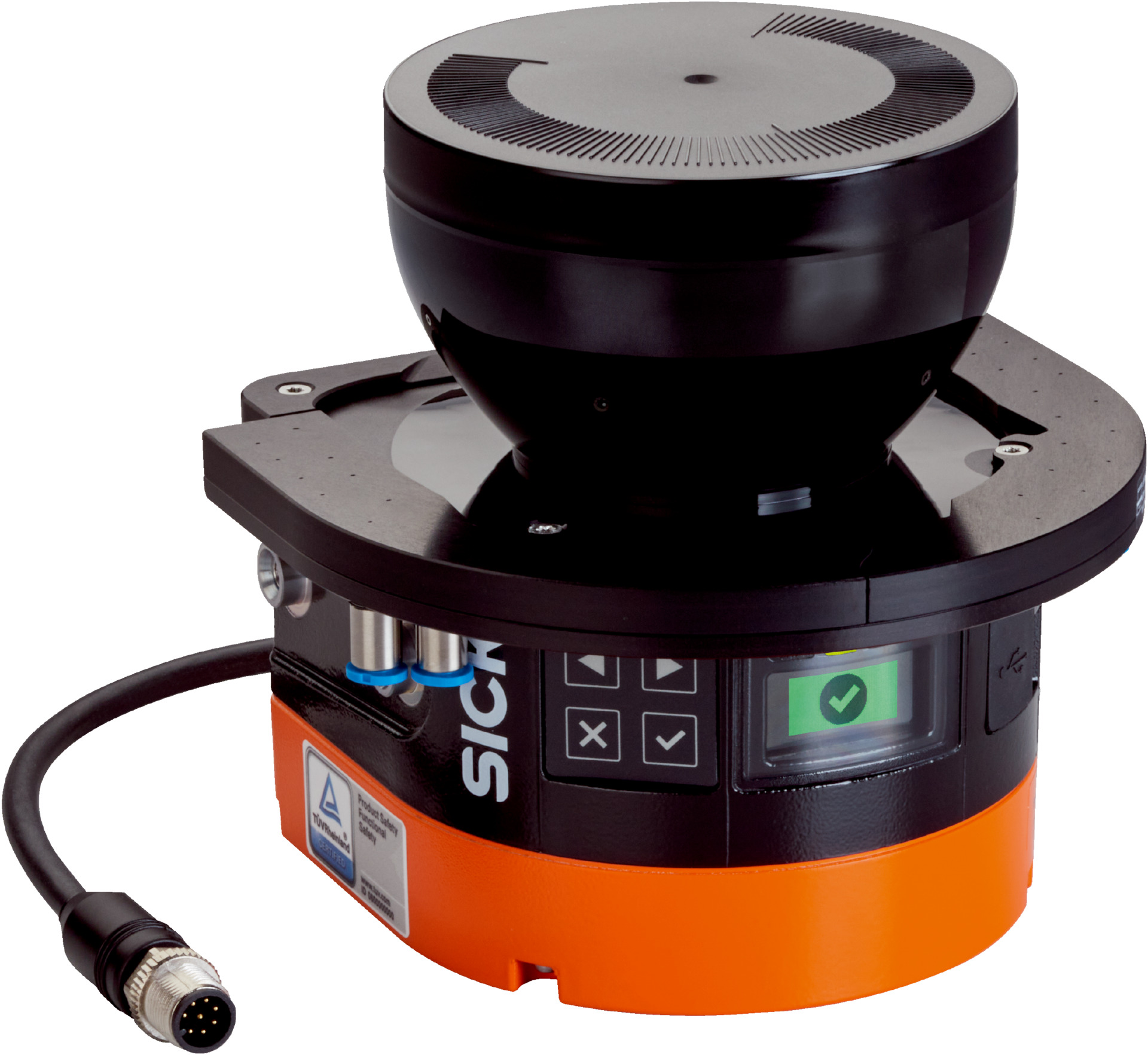

airWiper Kit outdoorScan3 Core I/O | Compressed Air Cleaning | 4m Protective Range | SIL 2 Safety Level | by SICK
The airWiper Kit outdoorScan3 Core I/O is designed for outdoor safety monitoring, featuring a protective field range of 4 m and a scanning angle of 275°. Ideal for industrial environments requiring compressed air cleaning, this sensor kit supports up to 4 simultaneously monitored fields and offers robust aluminum housing with an IP65 rating for durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating medium: Compressed air, purity class ISO 8573-1 [7:4:4]
- Input pressure: Typical 400 kPa (200 kPa to 600 kPa, 2.0 bar to 6.0 bar)
- Temperature of compressed air: ≤ +50 °C
- Protective field range: 4 m, Warning field range: 40 m
- Number of simultaneously monitored fields: up to 4
- Number of fields: 8
- Scanning angle: 275°
- Resolution: Configurable 50 mm or 70 mm
- Angular resolution: 0.39°
- Response time: 90 ms
- Safety type: Type 3 (IEC 61496), SIL 2 (IEC 61508), Category 3 (EN ISO 13849), PL d
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7 W typical without output load
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Housing material: Aluminum with polycarbonate optics cover
- Connection type: Male connector, M12, 8 pin, A-coded
- Compressed air connections: 4 x push-pull connection for 4 mm hose, M5 male thread
- Display: Graphic color display with LEDs
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 135mm x 128mm x 141mm
- Weight: 1.3 kg
Key Features
- Sensor kit for compressed air cleaning with system plug included
- Protective field range of 4 m and warning field range of 40 m
- Supports up to 4 simultaneously monitored fields and 8 fields total
- Scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Multiple safety functions including restart interlock and external device monitoring
- Robust aluminum housing with IP65 protection rating
- Graphic color display and LEDs for status indication
- Operating temperature range from -25 °C to +50 °C
- Vibration and shock resistant according to multiple IEC standards
Professional Installation Requirements
- Professional installation by qualified personnel is required to ensure compliance with safety standards and proper integration with existing safety systems.
Applications
- Outdoor safety monitoring and protection
- Industrial environments requiring compressed air cleaning
- Safety-related applications with laser scanning technology
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enables efficient compressed air cleaning reducing manual maintenance and waste
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low power consumption of 7 W typical
Warranty Information
Warranty details available upon request from manufacturer SICK.
Available Now
The SICK airWiper Kit outdoorScan3 Core I/O is available for immediate purchase, ideal for outdoor industrial safety and monitoring applications requiring compressed air cleaning.
