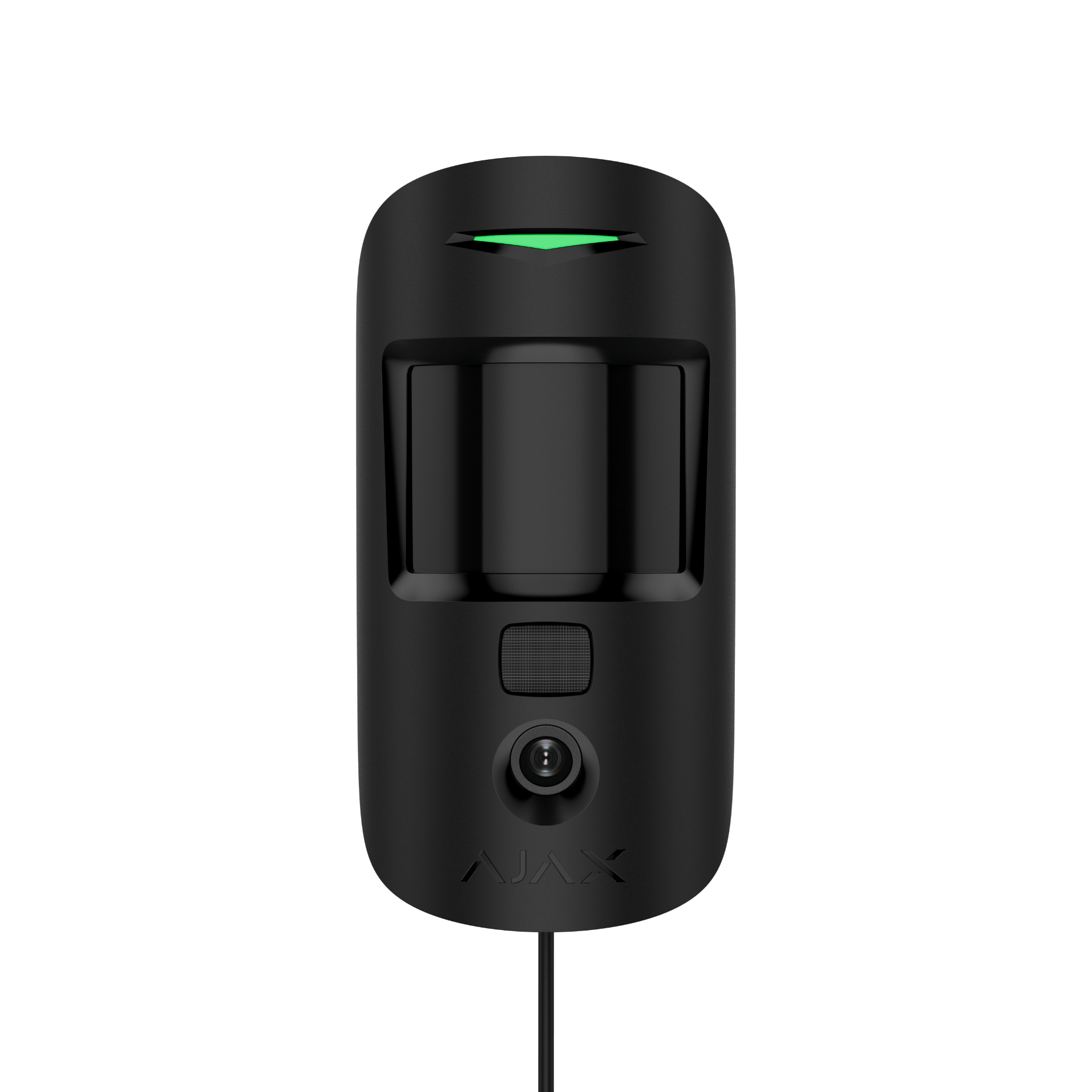

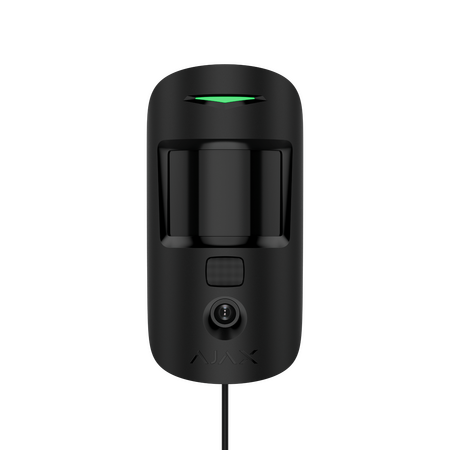

AJAX MotionCam Fibra Black | Built-in Camera | 5 Photos per Alarm | SmartDetect Algorithm | by AJAX
AJAX MotionCam Fibra Black is a cutting-edge motion detector with a built-in camera, capturing up to 5 photos per alarm at 640 × 480 resolution. Ideal for residential and commercial security, it features a PIR sensor for accurate detection and SmartDetect technology to minimize false alarms. With infrared backlighting for night use and pet immunity for animals up to 20 kg, this device ensures reliable monitoring in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: AJAX MotionCam Fibra Black | Built-in Camera | 5 Photos per Alarm | SmartDetect Algorithm | by AJAX
Brand: AJAX
SKU: 44402.23.BL1
Alternatively Known As: Ajax MotionCam Fibra, MotionCam Detector, Ajax Motion Detector with Camera, Fibra Motion Sensor

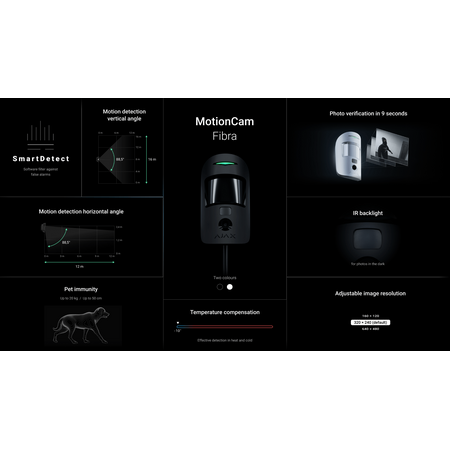

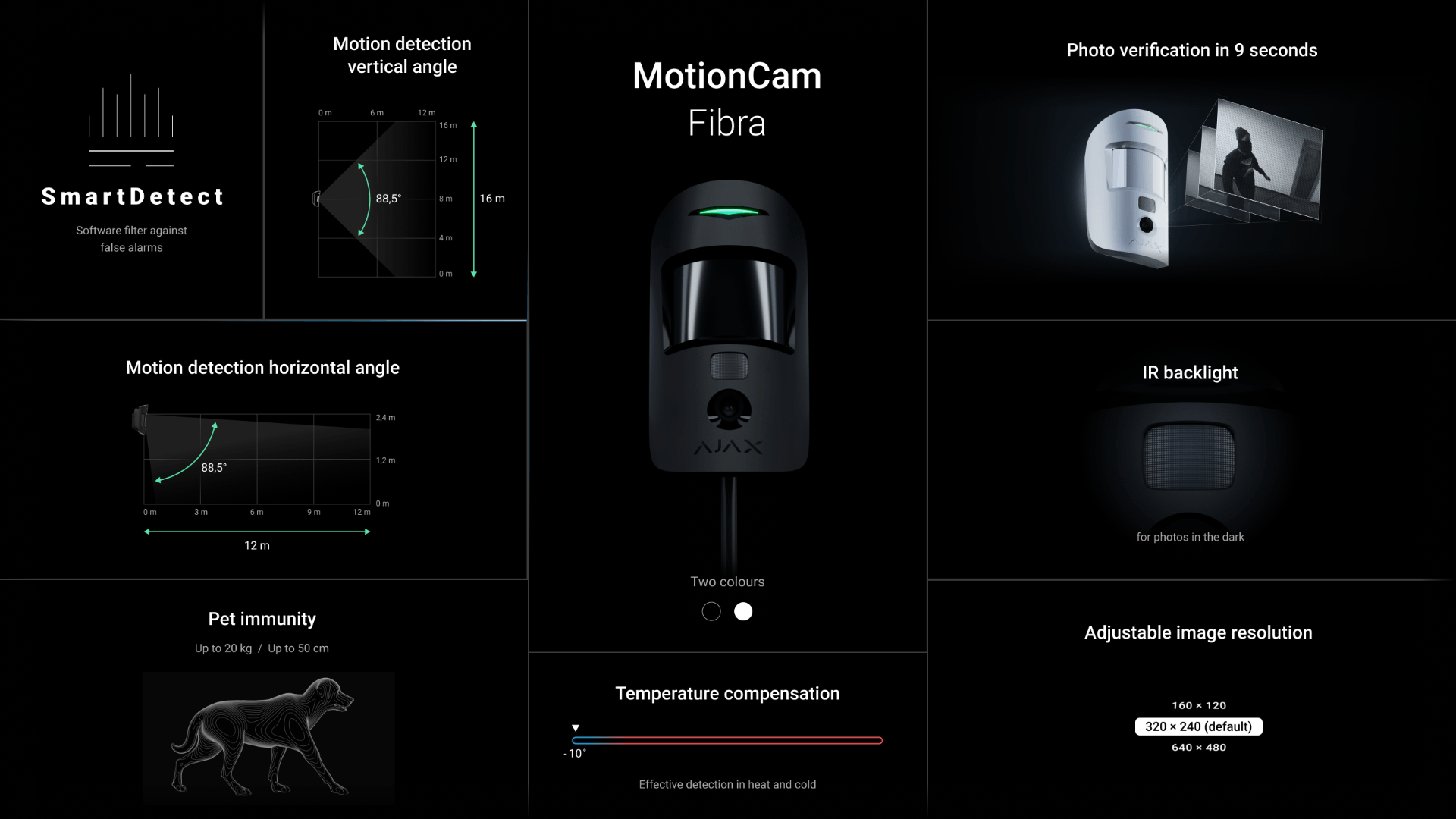

Technical Specifications
- Sensitive element: PIR sensor
- Motion detection distance: up to 12 m (installed at 2.4 m height)
- Motion detection angle: horizontal 88.5°, vertical 88.5°
- Motion detection speed: 0.3 to 2 m/s
- Image resolution: up to 640 × 480 pixels
- Number of photos per alarm: up to 5
- Infrared backlight for shooting in the dark: Yes
- Sensitivity: 4 levels
- Pet immunity: weight up to 20 kg, height up to 50 cm
- False alarm prevention: SmartDetect software algorithm
- Temperature compensation: effective from −10 °C to +40 °C
- Power supply: Fibra line power supply (5−30 V⎓, up to 25 mW)
- Auxiliary power supply: sealed LTO AA battery charged from Fibra line
- Line connection: 4-core cable
- Fibra line length: up to 2,000 meters using U/UTP cat.5 twisted pair
- Operating temperature range: −10 °C to +40 °C
- Operating humidity: up to 75%
- Protection class: IP50, IK04
- Dimensions (H x L x W): 135mm x 60mm x 70mm
- Weight: 0.141 kg
Key Features
- Built-in camera takes up to 5 photos per alarm with up to 640 × 480 pixels resolution
- Photo verification within 9 seconds to quickly assess actual situation
- PIR sensor by Excelitas Technologies for accurate motion detection
- SmartDetect software algorithm prevents false alarms
- Infrared backlight enables shooting in the dark
- Pet immunity for animals up to 20 kg and 50 cm height
- Temperature compensation ensures effective detection from −10 °C to +40 °C
- Fibra line power supply with auxiliary sealed LTO AA battery
- 4-core cable line connection with up to 2,000 meters Fibra line length
- Protection class IP50, IK04
Professional Installation Requirements
- Professional installation by a qualified security system technician is recommended to ensure proper setup and integration with Fibra line systems.
Applications
- Residential security systems
- Commercial property intrusion detection
- Industrial facility monitoring
- Security company alarm verification
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces unnecessary security patrols, lowering carbon footprint
- Energy-efficient power supply with low consumption
- Long-lasting sealed battery reduces waste
Warranty Information
24 months warranty.
Available Now
The AJAX MOTIONCAM FIBRA BLACK 2YR is available for immediate purchase, ideal for enhancing security in residential, commercial, and industrial applications.
