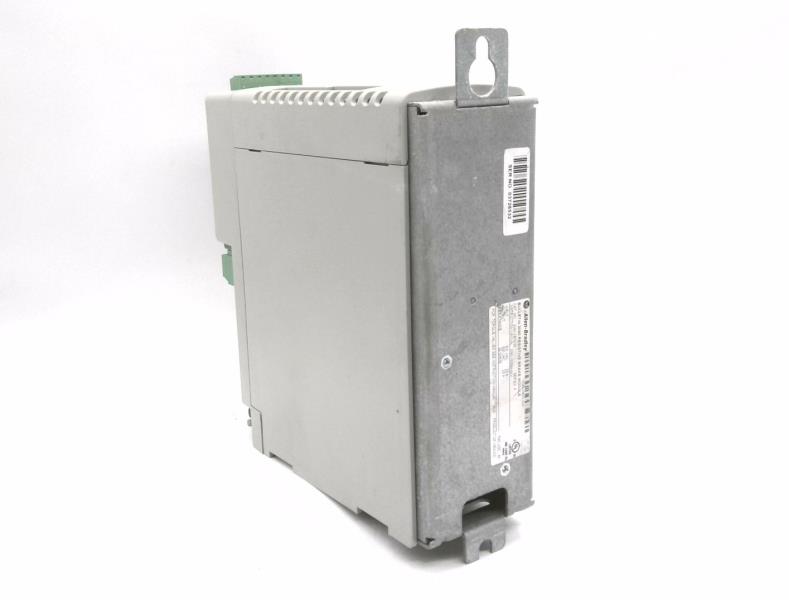

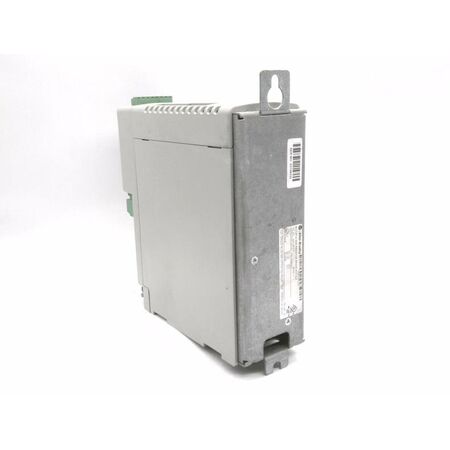

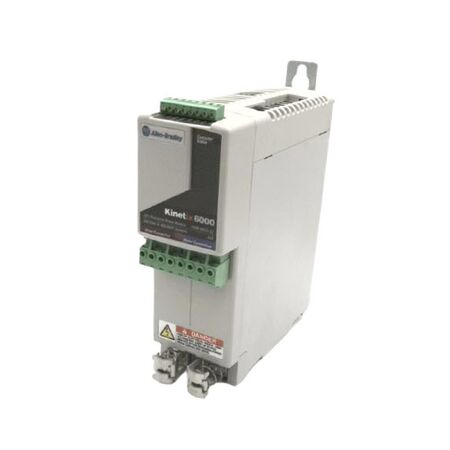

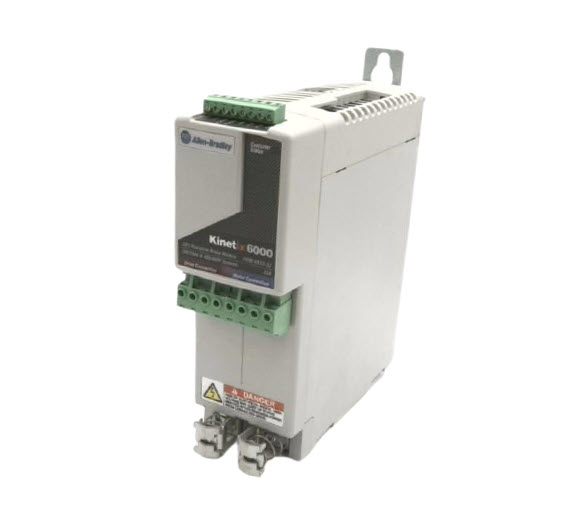

Allen-Bradley 2090XB3332 Resistive Brake Module
The Allen-Bradley 2090XB3332 Resistive Brake Module is designed for industrial motor control applications, providing reliable braking with 600 VAC and 23 AMP input/output ratings and 32 Ohms resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 2090XB3332 Resistive Brake Module
Brand: Allen-Bradley
SKU: 2090XB3332
Alternatively Known As: Brake Resistor Module, Motor Brake Module, Resistive Braking Unit
Technical Specifications
- Input Voltage: 600 VAC
- Input Current: 23 AMP
- Output Voltage: 600 VAC
- Output Current: 23 AMP
- Resistance: 32 Ohms
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 2.5 kg
Key Features
- Resistive brake module designed for high power applications
- Input and output rated at 600 VAC and 23 AMP
- 32 Ohms resistance for effective braking
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with industrial motor control equipment to ensure safety and compliance.
Applications
- Industrial motor control systems
- Variable frequency drives requiring braking modules
- Automation and manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve energy efficiency by safely dissipating braking energy
- Reduces wear on mechanical braking components
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 2090XB3332 Resistive Brake Module is available now for immediate purchase. Ideal for industrial motor control and automation applications.
