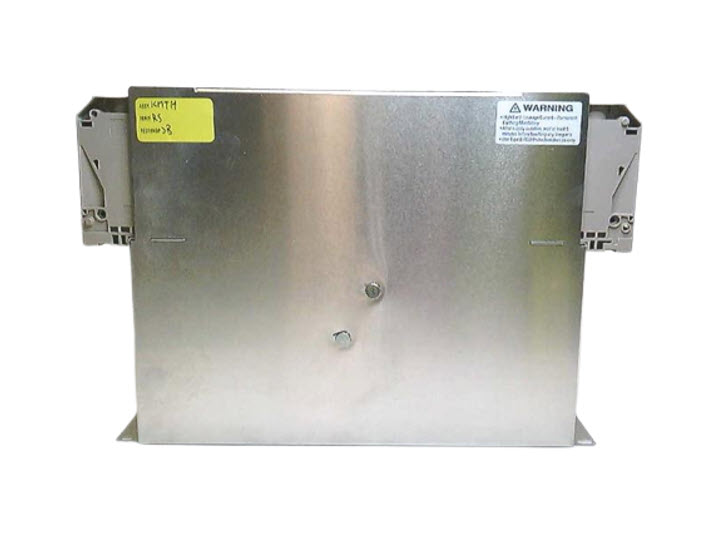

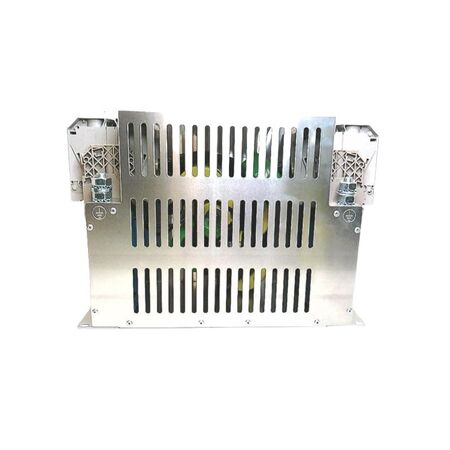

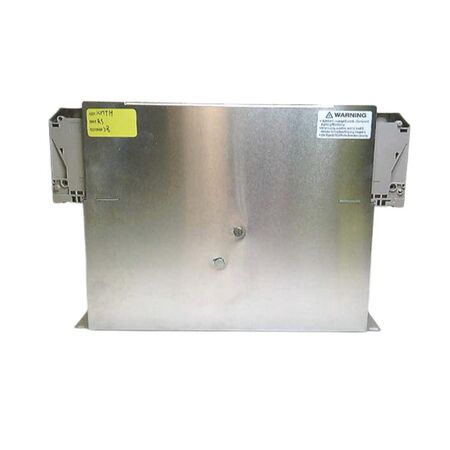

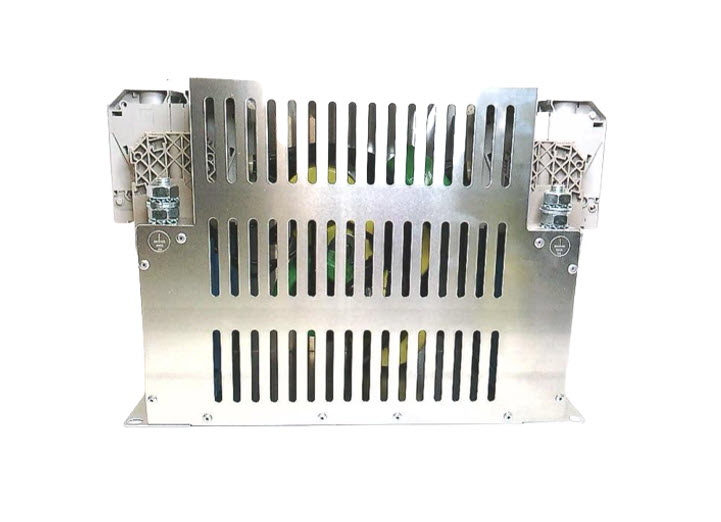

Allen-Bradley 22RFD150 EMC Filter for PowerFlex Drives

BRAND: Allen-Bradley
SKU: 22RFD150
$2,007.20 List price: $2,501.30
+ −
30 Days Return Delivery Options
The Allen-Bradley 22RFD150 EMC Filter is designed for PowerFlex drives, providing effective electromagnetic compatibility filtering for three-phase industrial motor control applications.

Product Name/Title: Allen-Bradley 22RFD150 EMC Filter for PowerFlex Drives

Brand: Allen-Bradley

SKU: 22RFD150

Alternatively Known As: EMC Filter for PowerFlex, Allen-Bradley EMC Filter 22RFD150, PowerFlex Drive EMC Filter

Technical Specifications
  • Model: 22RFD150
  • Type: EMC Filter
  • Compatible with PowerFlex drives
  • Phase: 3-phase
  • Frequency: 50/60 Hz
  • Power rating: 22-30 kW (30-40 HP) at 240 V AC
  • Power rating: 55 kW (75 HP) at 480 V AC
  • Enclosure: IP00, NEMA/UL type open; IP20 UL/NEMA type open
  • Mounting: Panel mount
  • Dimensions (H x L x W): 100mm x 200mm x 150mm
  • Weight: 3.5 kg
Key Features
  • EMC filter designed for PowerFlex drives
  • Suitable for 3-phase power systems
  • Operates at 50/60 Hz frequency
  • Supports power ratings from 22 to 30 kW and 30 to 40 HP at 240 V AC
  • Supports power ratings up to 55 kW and 75 HP at 480 V AC
  • Panel mount design
  • IP00 and IP20 UL/NEMA type open enclosure ratings
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with EMC filtering and PowerFlex drive systems to ensure compliance with electrical safety standards.
Applications
  • Industrial motor control systems
  • PowerFlex variable frequency drives
  • Three-phase electrical systems requiring EMC filtering
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Reduces electromagnetic interference, improving system efficiency and reducing electronic waste from equipment failure.
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 22RFD150 EMC Filter is available for immediate purchase, ideal for industrial motor control and PowerFlex drive applications.
