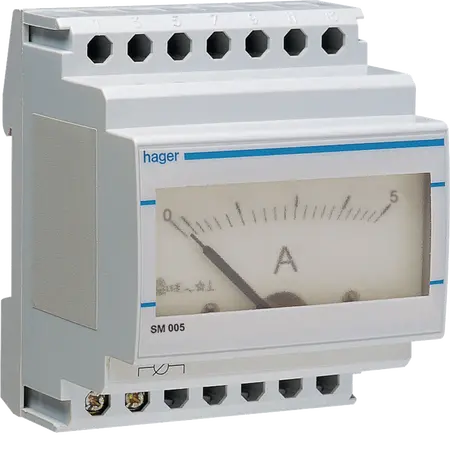

Analogue Ammeter 0-5A | Direct Reading | Compact DIN Rail | IP20 by Hager

BRAND: :hager

SKU: SM005

$121.10 List price: $154.90

+ −

30 Days Return Delivery Options

Analogue ammeter with 0-5A capacity and direct reading display—ideal for residential, commercial, and industrial electrical monitoring. Built for easy installation on DIN rails, with IP20 protection and high accuracy.

Description
Attachments

Product Name/Title: Analogue ammeter 0-5A direct reading

Brand: Hager

SKU: SM005

Alternatively Known As: Current Meter, Analog Current Meter, Ammeter 0-5A

Technical Specifications

Capacity: 0 - 5 A
Operating temperature: -25 to 50 °C
Storage/transport temperature: -40 to 80 °C
Connection: Flexible conductor cross-section 1 - 6 mm², Rigid conductor cross-section 1.5 - 10 mm²
Power consumption: 1.10 VA
Total power loss under IN: 1.10 W
Ingress Protection (IP) class: IP20
Accuracy class: 0.015
Rated insulation voltage: 2000 V
Frequency: 45 - 65 Hz
Dimensions (H x L x W): 85mm x 54mm x 70mm
Weight: 0.5 kg

Key Features

Direct reading analogue display for easy monitoring of current.
Compact design suitable for DIN rail mounting.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small electrical installations
Commercial: Offices and retail environments requiring current measurement
Industrial: Monitoring electrical systems in various applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager Analogue Ammeter 0-5A Direct Reading is available now for immediate purchase. Ideal for residential and commercial electrical monitoring.

SM005 (SM005, 239 Kb) [Download]

reach_declaration_SM005.pdf (reach_declaration_SM005.pdf, 103 Kb) [Download]

rohs_declaration_SM005.pdf (rohs_declaration_SM005.pdf, 104 Kb) [Download]
