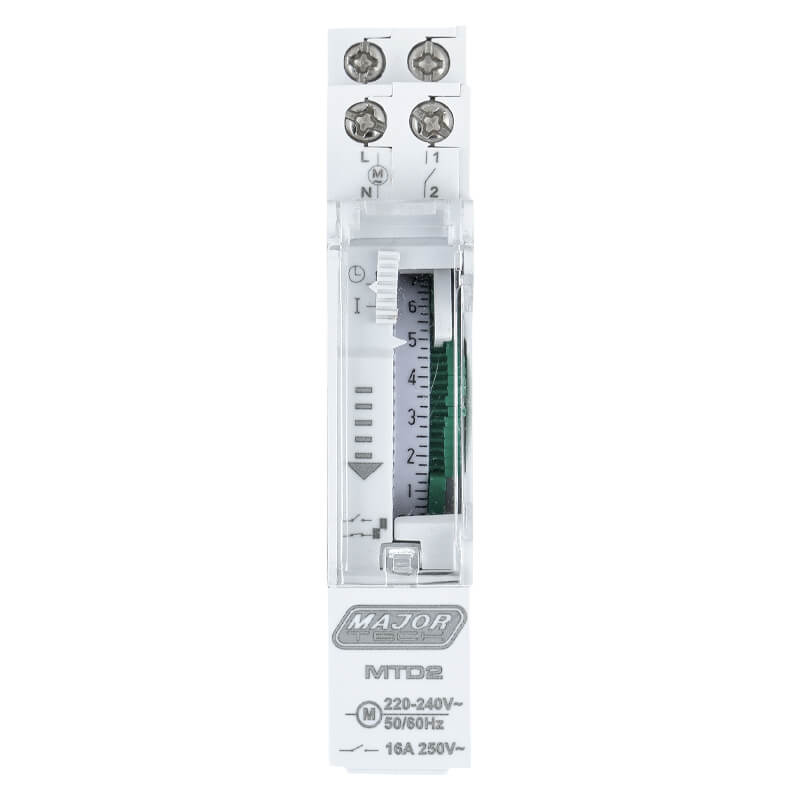

Analogue Timer 24 Hour 16A MajorTech

BRAND: Major Tech
SKU: MTD2
$59.00 List price: $78.60
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech analogue timer features a 24 hour dial and 16A rating. Ideal for switchboard time control of lighting and appliances.

Alternatively Known As: DIN Rail Analogue Timer, 24-Hour Time Switch, Daily Analogue Timer

Technical Specifications
  • Model: MTD2
  • Timer Type: Daily analogue time switch
  • Supply Voltage: 230V AC, 45/60Hz
  • Switching Capacity: 16A resistive / 4A inductive at 250V AC
  • Programmable Settings: 96 pins per 24-hour cycle
  • Minimum Switching Interval: 15 minutes
  • Battery Backup: Approximately 100 hours
  • Power Consumption: 0.5W
  • Timing Accuracy: ±3 seconds per day at 22°C
  • Operating Temperature: -10°C to +50°C
  • Protection Rating: IP20
  • Mounting: 1-module DIN rail
  • Manual Override: Automatic or permanent ON
  • Movement: Quartz
  • Terminal Capacity: 2 x 2.5 mm²
  • Dimensions (H x L x W): 90mm x 17.5mm x 66mm
  • Weight: 0.1 kg
Key Features
  • 24-hour analogue programming for daily switching schedules
  • 16A resistive load rating for lighting and appliances
  • 96 adjustable pins provide 15-minute programming intervals
  • Approximately 100-hour battery backup retains timer settings during power interruptions
  • Manual override allows permanent operation when required
  • Compact 1-module DIN rail format for switchboard installation
  • Low 0.5W operating consumption
  • Suitable for indoor locations under correct installation conditions
Professional Installation Requirements
  • Installation involves 230V mains wiring and should be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
  • Switchboard time control for lighting circuits
  • Timed control of appliances and electrical equipment
  • Pool pump scheduling
  • Geyser and hot-water system control
  • Heating and general electrical load automation
Standards & Compliance
  • AS/NZS 3000: Electrical installations – Wiring Rules
  • AS/NZS 60669.1: Switches for household and similar fixed electrical installations – General requirements
Environmental Benefits
  • 0.5W operating consumption helps reduce standby energy use
  • Programmable operation can reduce unnecessary lighting and appliance runtime
  • Rechargeable battery backup helps retain settings and extend usable service life
  • DIN rail construction supports maintainability and replacement of the timer module without replacing the complete switchboard assembly
Warranty Information

2-year limited warranty, subject to MajorTech warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
