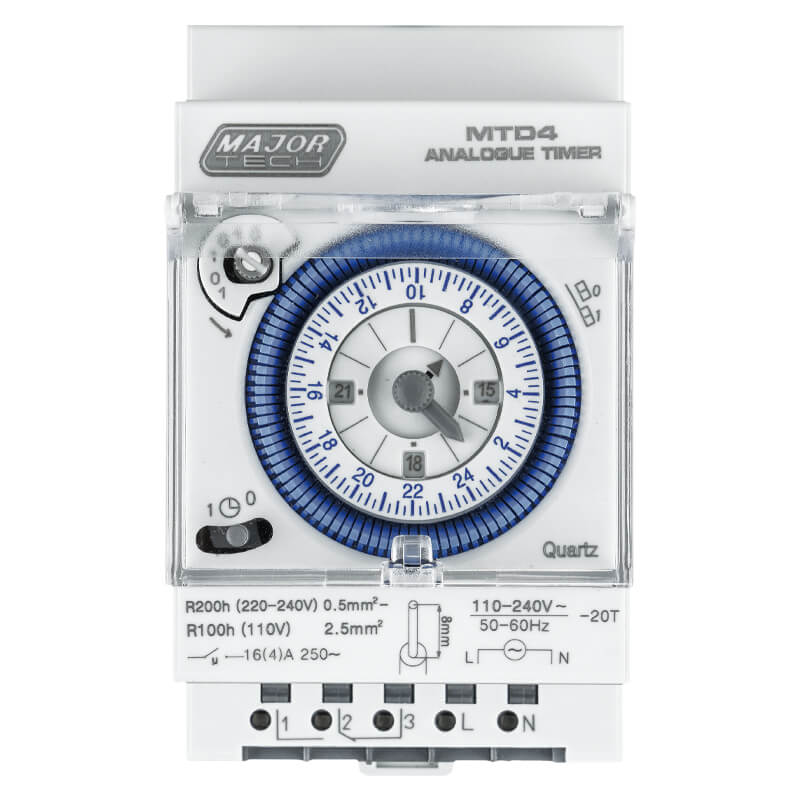

Analogue Timer 3 Module MajorTech

BRAND: Major Tech
SKU: MTD4
$102.30 List price: $136.40
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech analogue timer features a 3 module DIN body and analogue dial. Ideal for switchboard time control of lighting and appliances.

Alternatively Known As: MTD4 Analogue Time Switch, 24-Hour DIN Rail Timer, Switchboard Timer

Technical Specifications
  • Model: MTD4
  • Supply Voltage: 230V AC, 50–60Hz
  • Switching Capacity: 16A resistive, 4A inductive, 1000W LED at 230V AC
  • Programming: 24-hour cycle with 96 pins
  • Minimum Switching Interval: 15 minutes
  • Battery Backup: Up to 200 hours after 24-hour recharge
  • Power Consumption: 2.5VA
  • Switching Contacts: Normally open and normally closed changeover contacts
  • Operating Temperature: -10°C to +50°C
  • Ingress Protection: IP20
  • Mounting: DIN rail
  • Timing Accuracy: ≤1 second per day at 25°C
  • Dimensions (H x L x W): 90mm x 65mm x 54mm
  • Weight: 0.152 kg
Key Features
  • Three-module DIN rail body for switchboard installation
  • Analogue 24-hour dial with 96 adjustable programming pins
  • 15-minute minimum switching intervals
  • Manual override for automatic, permanent on, permanent off and temporary reversal modes
  • Suitable for lighting, appliances, geysers and pool pumps
  • Supports resistive, inductive and LED lighting loads
  • 200-hour rechargeable battery reserve
  • Normally open and normally closed switching terminals
  • IP20 enclosure for installation inside suitable switchboards
Professional Installation Requirements
  • Installation involves 230V mains wiring and should be completed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Install inside a suitable switchboard enclosure and observe the product load ratings.
Applications
  • Switchboard control of lighting circuits
  • Timed control of household and commercial appliances
  • Geyser and hot-water system scheduling
  • Pool pump time control
  • LED lighting automation
  • General electrical load scheduling in residential, commercial and light industrial installations
Standards & Compliance
  • AS/NZS 60730-1 listed by the manufacturer for automatic electrical controls
  • AS/NZS 3000 applicable to installation in Australian electrical switchboards
  • IEC 60730-1 and IEC 60730-2-7 listed in the manufacturer’s technical documentation
Environmental Benefits
  • Scheduled operation can reduce unnecessary lighting and appliance energy consumption
  • Rechargeable battery backup reduces reliance on regularly replaced disposable batteries
  • DIN rail mounting and a durable electrical enclosure support long service life and reduced replacement waste
  • Suitable for controlling LED lighting systems with loads up to 1000W
Warranty Information

2-year warranty for MajorTech timers, subject to the manufacturer’s Australian warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
