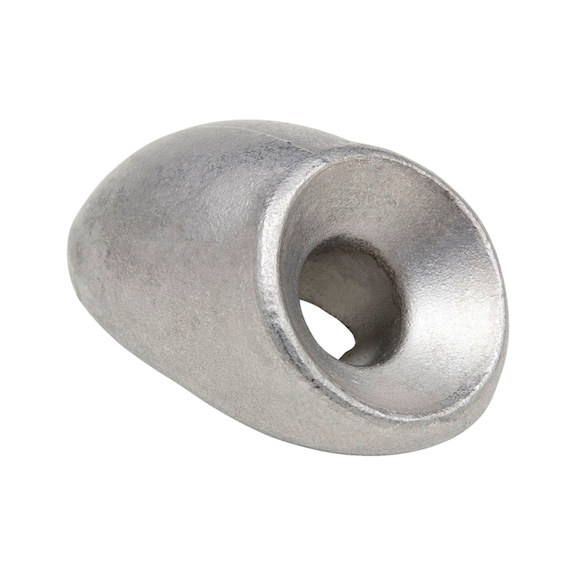

Angled Washer 45° A2 Oval Hole | Stainless Steel | Quick Mounting | Corrosion Resistant | @Pack of 25 | by Wurth
Angled Washer 45° A2 Oval Hole is designed for optimal tensile stress transfer in metal and wood connections. Ideal for timber construction and structural woodwork, this stainless steel washer ensures high fitting accuracy and quick mounting through its oval hole design. Perfect for outdoor applications, it offers durability and corrosion resistance, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 45° A2 Oval Hole | Stainless Steel | Quick Mounting | Corrosion Resistant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700494
Alternatively Known As: 45 Degree Angled Washer, Stainless Steel Angled Washer, Oval Hole Washer, Metal Wood Connection Washer
Technical Specifications
- Internal diameter (d): 8.5 mm
- Elongated hole length/width: 32 x 10 mm
- Effective length (n): 12.7 mm
- Insertion length (l): 31.7 mm
- Length (L): 39 mm
- Height (h): 16 mm
- Distance between centre of hole and edge (k): 21 mm
- Insertion depth (h1): 3.7 mm
- Internal width (b): 9.9 mm
- Width (a): 24 mm
- Countersink diameter (D): 39 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Stainless steel A2
- Surface: Plain
- Product weight (per item): 50 g
- Min./max. material thickness: 4-15 mm
- Suitable for screw: ASSY 4 A2 countersunk head diameter 8 mm, ASSY 3.0 A2 countersunk head diameter 8 mm
- Area of application: Timber construction, Metal wood connections, Structural woodwork
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 16mm x 39mm x 24mm
- Weight: 0.05 kg
Key Features
- Optimum transfer of tensile stresses for metal/wood connections with ASSY 4 or ASSY 3.0 stainless steel countersunk head screws
- High fitting accuracy and precise 45° specification for screwing ASSY 4 or ASSY 3.0 stainless steel countersunk head screws
- No pulling through of the screw head when using thin sheet metals
- Quick and easy mounting through a simple oval hole in the metal plate
- Clean appearance of the finished screw connection
- Suitable for utilisation class 3 and outdoor areas exposed to the elements
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct fitting and compliance with structural requirements.
Applications
- Timber construction
- Metal wood connections
- Structural woodwork
- Outdoor areas exposed to the elements
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel A2 which is durable and corrosion resistant, reducing replacement frequency and waste
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth Angled Washer 45° A2 Oval Hole 25 PCS is available for immediate purchase, ideal for timber and metal wood structural connections in outdoor and exposed environments.
