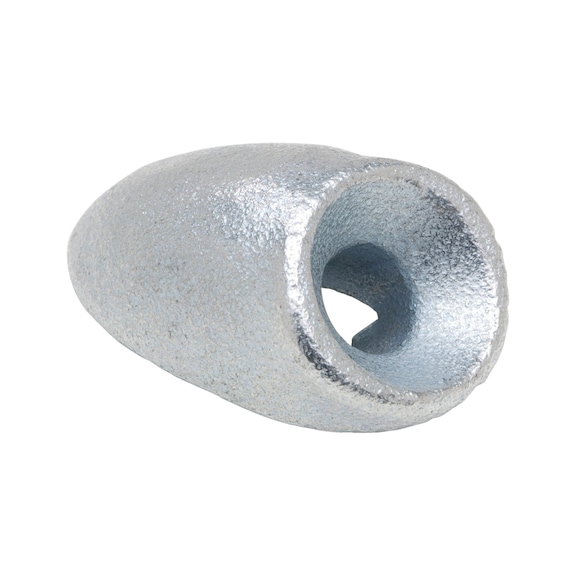

Angled Washer 45° Oval Hole Zinc Plated High Fitting Accuracy Variant-3 Wurth

BRAND: Wurth
SKU: 457700485
$912.40 List price: $1,146.80
25 PCS ($36.50 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Angled Washer 45° Oval Hole is designed for optimal tensile force transfer in metal and wood connections.
Technical Specifications
  • Internal diameter (d): 10.7 mm
  • Elongated hole length/width: 44 x 11 mm
  • Effective length (n): 18.4 mm
  • Insertion length (l): 43.7 mm
  • Length (L): 52 mm
  • Height (h): 21.4 mm
  • Distance between centre of hole and edge (k): 28.7 mm
  • Insertion depth (h1): 4.7 mm
  • Internal width (b): 10.8 mm
  • Width (a): 29 mm
  • Countersink diameter (D): 24 mm
  • Screw-in angle: 45 Degree
  • Countersink angle (α): 90 Degree
  • Material: Cast steel
  • Surface: Zinc plated
  • Product weight (per item): 117.599 g
  • Min./max. material thickness: 5-20 mm
  • Suitable for screws: ASSY 3.0 countersunk head diameter 10 mm, ASSYplus VG countersunk head diameter 10 mm, ASSY 4 countersunk head diameter 10 mm
  • Approval: ETA-11/0190
  • RoHS-compliant: Yes
  • Dimensions (H x L x W): 21.4mm x 52mm x 29mm
  • Weight: 0.118 kg
Key Features
  • Optimum transfer of tensile force in metal/wood connections with ASSY countersunk head screws
  • High fitting accuracy and precise 45° specification for screwing the ASSYplus FT 4 screws
  • Screw head does not pull through when using thin-walled metal tabs
  • Quick and easy mounting of the angled washer through a simple oval hole in the metal plate
  • Clean appearance of the finished screw connection
  • Application in utilisation classes 1 and 2
Professional Installation Requirements
  • Installation should be performed by a qualified professional to ensure correct fitting and compliance with structural requirements.
Applications
  • Timber construction
  • Metal wood connections
  • Structural woodwork
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • RoHS-compliant ensuring reduced hazardous substances
  • Zinc plated surface for corrosion resistance extending product life
Warranty Information

Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.

Available Now

Wurth Angled Washer 45° Oval Hole 25 PCS is available for immediate purchase, ideal for timber construction and metal wood connection applications.
