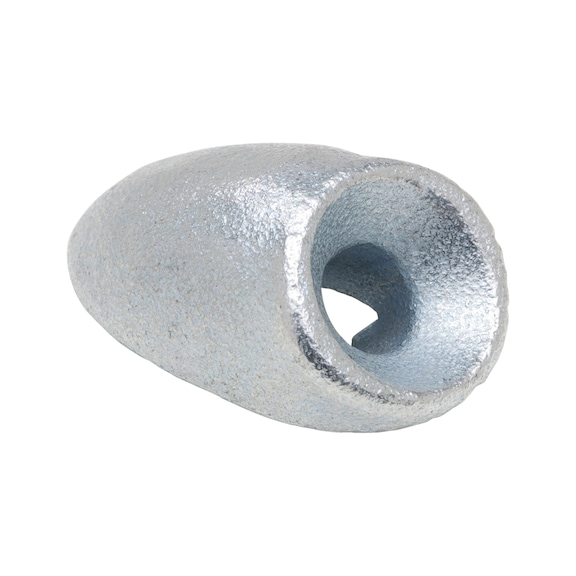

Angled Washer 45° Oval Hole | Zinc Plated | High Fitting Accuracy | Quick Mounting | @Pack of 25 | by Wurth
Angled Washer 45° Oval Hole is designed for optimal tensile force transfer in metal and wood connections. With a zinc-plated finish for corrosion resistance and high fitting accuracy, it ensures a clean and secure installation. Ideal for timber construction and structural woodwork, this washer simplifies the mounting process with its quick and easy design, making it perfect for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Angled Washer 45° Oval Hole | Zinc Plated | High Fitting Accuracy | Quick Mounting | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 457700486
Alternatively Known As: 45 Degree Angled Washer, Oval Hole Washer, Metal Wood Connection Washer, ASSY Countersunk Washer
Technical Specifications
- Internal diameter (d): 12.7 mm
- Elongated hole length/width: 50 x 13 mm
- Effective length (n): 19.8 mm
- Insertion length (l): 49.7 mm
- Length (L): 59 mm
- Height (h): 23.5 mm
- Distance between centre of hole and edge (k): 34 mm
- Insertion depth (h1): 5.6 mm
- Internal width (b): 12.8 mm
- Width (a): 30 mm
- Countersink diameter (D): 26 mm
- Screw-in angle: 45 Degree
- Countersink angle (α): 90 Degree
- Material: Cast steel
- Surface: Zinc plated
- Product weight (per item): 160 g
- Min./max. material thickness: 6-25 mm
- Suitable for screws: ASSY 3.0 countersunk head diameter 12 mm, ASSYplus VG countersunk head diameter 12 mm, ASSY 4 countersunk head diameter 12 mm
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 23.5mm x 59mm x 30mm
- Weight: 0.16 kg
Key Features
- Optimum transfer of tensile force in metal/wood connections with ASSY countersunk head screws
- High fitting accuracy and precise 45° specification for screwing the ASSYplus FT 4 screws
- Screw head does not pull through when using thin-walled metal tabs
- Quick and easy mounting of the angled washer through a simple oval hole in the metal plate
- Clean appearance of the finished screw connection
- Application in utilisation classes 1 and 2
Professional Installation Requirements
- Installation should be performed by professionals familiar with timber and metal structural connections to ensure compliance with structural standards and safety.
Applications
- Timber construction
- Metal wood connections
- Structural woodwork
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plated surface for corrosion resistance extending product life
Warranty Information
Warranty information not specified; refer to Wurth standard product warranty.
Available Now
Wurth Angled Washer 45° Oval Hole 25 PCS is available for immediate purchase, ideal for timber construction and metal wood connection applications.
