Apprentice Pro Combo Kit MajorTech
MajorTech combo kit features an apprentice pro selection of test and hand tools. Ideal for apprentices and general electrical work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech Apprentice Test Kit, MajorTech Apprentice Electrical Test Kit, MTK10
Technical Specifications

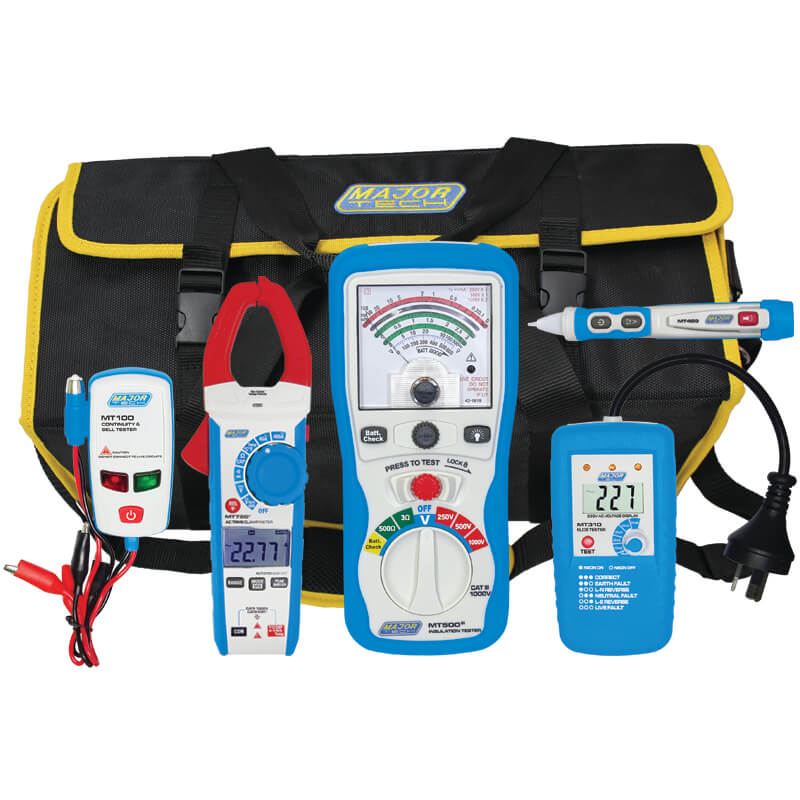

- Kit Contents: MT720 400A AC clamp meter, MT500 analogue insulation tester, MT310 ELCB tester, MT403 NCV detector, MT100 continuity and bell tester, MTKBAG meter case
- MT720 Measurement Functions: AC/DC voltage, AC current, resistance, frequency, capacitance, temperature, duty cycle, inrush current and VFD voltage
- MT720 Safety Rating: CAT III 600V and CAT II 1000V
- MT720 Clamp Capacity: 30mm cable diameter
- MT500 Test Ranges: 250V, 500V and 1000V insulation testing
- MT500 Safety Rating: CAT IV 600V and CAT III 1000V
- MT310 ELCB Testing: 10mA to 35mA fixed test-current settings for 230V systems
- MT310 Safety Rating: CAT IV 300V and CAT III 600V
- MT403 Voltage Detection: Up to 1000V AC, IP67-rated housing
- MT403 Safety Rating: IEC 61010-1 CAT IV 1000V
- MT100 Cable Tracing Distance: Up to 3000m with minimum 26-gauge cable
- Case Dimensions: 220mm H x 450mm W x 200mm D
- Dimensions (H x L x W): 220mm x 450mm x 200mm
- Weight: 5.5 kg
Key Features
- Comprehensive test equipment selection for electrical apprentices and general electrical work
- Combines voltage, current, resistance, insulation, ELCB, continuity and non-contact voltage testing functions
- 400A AC clamp meter with 1000V measurement capability and 30mm clamp opening
- Analogue insulation tester with 250V, 500V and 1000V test ranges
- ELCB tester for 230V systems with selectable 10mA to 35mA test currents
- IP67 waterproof and dustproof non-contact voltage detector
- Continuity and bell tester for remotely identifying and labelling wires
- Heavy-duty meter case with shoulder strap and adjustable internal compartments
- Portable kit suitable for service, installation, maintenance and fault-finding tasks
Professional Installation Requirements
- The kit is intended for use by suitably trained electrical workers. Testing of live electrical systems should be performed by a competent person in accordance with applicable electrical safety procedures and site requirements.
Applications
- Electrical apprentice training and field work
- General electrical installation testing
- Circuit fault finding and maintenance
- Insulation resistance testing
- Earth-leakage circuit-breaker testing
- Non-contact voltage detection
- Cable continuity and wire identification
- Commercial, industrial and residential electrical service work
Standards & Compliance
- AS/NZS 61010.1 is the relevant safety standard family for electrical measurement and test equipment; confirm individual instrument conformity from the supplied compliance documentation.
- AS/NZS 3820 provides essential safety requirements for in-scope electrical equipment where applicable.
- AS/NZS 3017:2022 provides guidance for verification and testing of electrical installations and references AS 61010.1 for measuring equipment.
Environmental Benefits
- Reusable heavy-duty meter case helps protect instruments and extend service life, reducing replacement waste.
- Combines several test instruments into one portable kit, reducing the need for separate cases and duplicate transport packaging.
- Durable professional instruments can support longer service intervals when maintained and calibrated correctly.
Warranty Information
MajorTech test instruments are covered by a two-year warranty from shipment or delivery, subject to product registration and the manufacturer’s warranty conditions. The general MajorTech policy also specifies a standard product warranty; the extended two-year period applies to test instruments. ([majortech.com.au](https://majortech.com.au/site/warranty?utm_source=openai))
Available Now
Available through MajorTech and authorised Australian electrical distributors.
