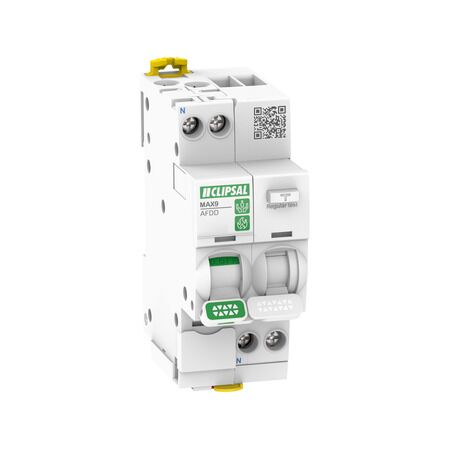

Arc Fault Detection Circuit Breaker 20A | 30mA Sensitivity | C Curve | Clipsal
Arc fault detection circuit breaker with 20A current and 30mA sensitivity—ideal for residential and commercial circuit protection. Built for safety, with C Curve and 6000A breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 20A at 30°C
- Rated operational voltage: 240V AC 50Hz
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles AC 50Hz
- IP Rating: IP20
- Ambient air temperature for operation: -25 to 70°C
- Rated insulation voltage: 440V AC 50Hz
- Overvoltage category: III
- Tropicalisation: Severity B conforming to IEC 60068-2-30
- Dimensions (H x L x W): 91mm x 75mm x 36mm
- Weight: 0.237 kg
Key Features
- All-in-one arc fault detection and residual current circuit breaker (AFDD+RCBO).
- C Curve with a breaking capacity of 6000A.
- Instantaneous earth-leakage protection with a sensitivity of 30mA.
- Toggle control type with local signalling for ON, OFF, and fault trip.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS 61009.1 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directives and free from mercury.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for circuit protection in residential and commercial spaces.
