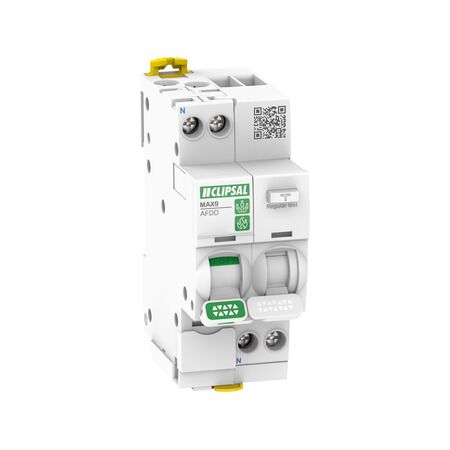

Arc Fault Detection RCBO 1P+N | 25A 30mA C Curve | 6000A by Clipsal
Arc fault detection RCBO with 1P+N configuration and 25A, 30mA C Curve—ideal for residential and commercial safety. Built for enhanced protection, with 6000A breaking capacity and easy DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 25A at 30°C
- Rated operational voltage: 240V AC 50Hz
- Control type: Toggle
- Local signalling: ON, OFF, fault trip
- Mounting mode: Clip-on, DIN rail
- Mechanical durability: 20,000 cycles
- Electrical durability: 10,000 cycles AC 50Hz
- IP degree of protection: IP20
- Ambient air temperature for operation: -25...70°C
- Earth-leakage protection class: Type A
- Trip unit technology: Thermal-magnetic
- Rated insulation voltage: 440V AC 50Hz
- Overvoltage category: III
- Dimensions (H x L x W): 91mm x 75mm x 36mm
- Weight: 0.24 kg
Key Features
- Arc Fault Detection (AFDD) integrated with RCBO for enhanced safety.
- 1P+N configuration with a breaking capacity of 6000A.
- C Curve with 30mA earth-leakage sensitivity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and other living spaces
- Commercial: Offices, retail, and hospitality environments
- General: Electrical distribution and fire prevention applications
Standards & Compliance
- Complies with AS/NZS 61009.1 for safety and performance.
Environmental Benefits
- Compliant with EN/IEC 62606 and AS/NZS 61009.1 standards.
Warranty Information
7 years warranty against manufacturing defects.
Available Now
The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for residential and commercial electrical systems.
