MAX9, Arc Fault Detection (AFDD+RCBO), 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one

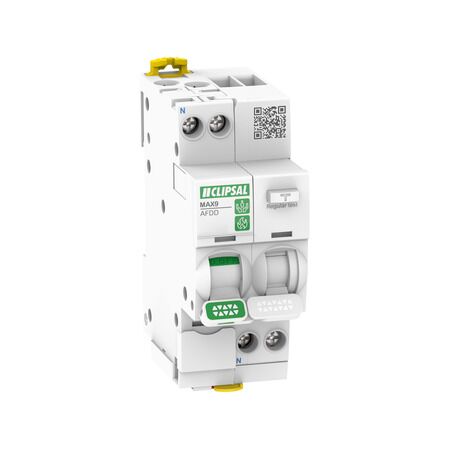

Arc Fault Detection RCBO 16A | 30mA C Curve | 6000A Capacity | All-in-One by Clipsal

BRAND: Clipsal

SKU: MX9A3216

$224.70 List price: $337.10

+ −

30 Days Return Delivery Options

Arc fault detection RCBO with 16A current and 30mA sensitivity—ideal for fire prevention in residential and commercial systems. Built for safety, with all-in-one design and thermal-magnetic trip technology.

Description
Attachments

Product Name/Title: MAX9, Arc Fault Detection (AFDD+RCBO), 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one

Brand: Clipsal

SKU: MX9A3216

Alternatively Known As: Arc Fault Detection RCBO, AFDD, Circuit Breaker with Arc Detection

Technical Specifications

Rated current: 16 A at 30 °C
Rated operational voltage: 240 V AC 50 Hz
Breaking capacity: 6000 A Icn at 240 V AC 50 Hz
Control type: toggle
Mounting mode: clip-on, DIN rail
Mechanical durability: 20000 cycles
Electrical durability: 10000 cycles AC 50 Hz
IP degree of protection: IP20
Ambient air temperature for operation: -25...70 °C
Rated insulation voltage: 440 V AC 50 Hz
Overvoltage category: III
Dimensions (H x L x W): 91mm x 75mm x 36mm
Weight: 0.237 kg

Key Features

All-in-one design with integrated earth-leakage protection.
Instantaneous earth-leakage protection with a sensitivity of 30 mA.
Thermal-magnetic trip unit technology for reliable performance.
Suitable for isolation and compatible with top comb busbars.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Fire prevention by arc detection in residential and commercial electrical systems.

Standards & Compliance

Complies with AS/NZS 61009.1 and EN/IEC 62606 for safety and performance standards.

Environmental Benefits

Compliant with RoHS directives and free from hazardous substances.

Warranty Information

7 years warranty against manufacturing defects.

Available Now

The Clipsal MAX9 Arc Fault Detection RCBO is available now for immediate purchase. Ideal for fire prevention in electrical systems.

MX9A3216 (MX9A3216, 210 Kb) [Download]
