Arc Fault Detection Device AFDD & RCBO | 16A 30mA | 6kA C Curve by NHP
Arc fault detection device with 16A current and 30mA leakage—ideal for residential and commercial safety. Built for enhanced protection, combining AFDD and RCBO in one compact unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

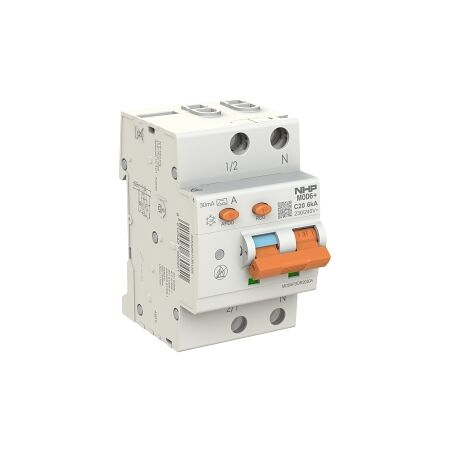

Product Name/Title: NHP MOD6+ Arc Fault Detection Device AFDD & RCBO 6kA 1 Pole and Switched N 16A C Curve 30mA Type A
Brand: NHP
SKU: MD6AFDDR1630A
Alternatively Known As: AFDD, RCBO, Arc Fault Detector, Residual Current Device
Technical Specifications
- Rated Current: 16 A
- Rated Voltage: 240 V
- Rated Leakage Current: 30 mA
- Frequency: 50/60 Hz
- Rated Short Circuit Breaking Capacity: 6 kA
- Voltage Type: AC
- Trip Curve: C
- Rated Impulse Withstand Voltage: 4 kV
- Tripping Time: 300 ms
- Min Service Voltage: 170 V
- Max Operating Voltage: 255 V
- Rated Residual Make Break Capacity: 6000 A
- Number of Poles Total: 2
- Degree of Protection: IP40
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Mounting Method: DIN rail
- Operating Temperature: -25 to 55 °C
- Dimensions (H x L x W): 85mm x 75mm x 52.5mm
- Weight: 0.24 kg
Key Features
- Combines Arc Fault Detection Device (AFDD) and Residual Current Breaker with Overcurrent (RCBO) in one unit.
- Rated for 16A with a 30mA leakage current.
- 6kA short circuit breaking capacity.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any installation requiring arc fault detection and residual current protection
Standards & Compliance
- Complies with AS/NZS 61009 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The NHP MOD6+ Arc Fault Detection Device AFDD & RCBO is available now for immediate purchase. Ideal for residential and commercial applications requiring enhanced electrical safety.
