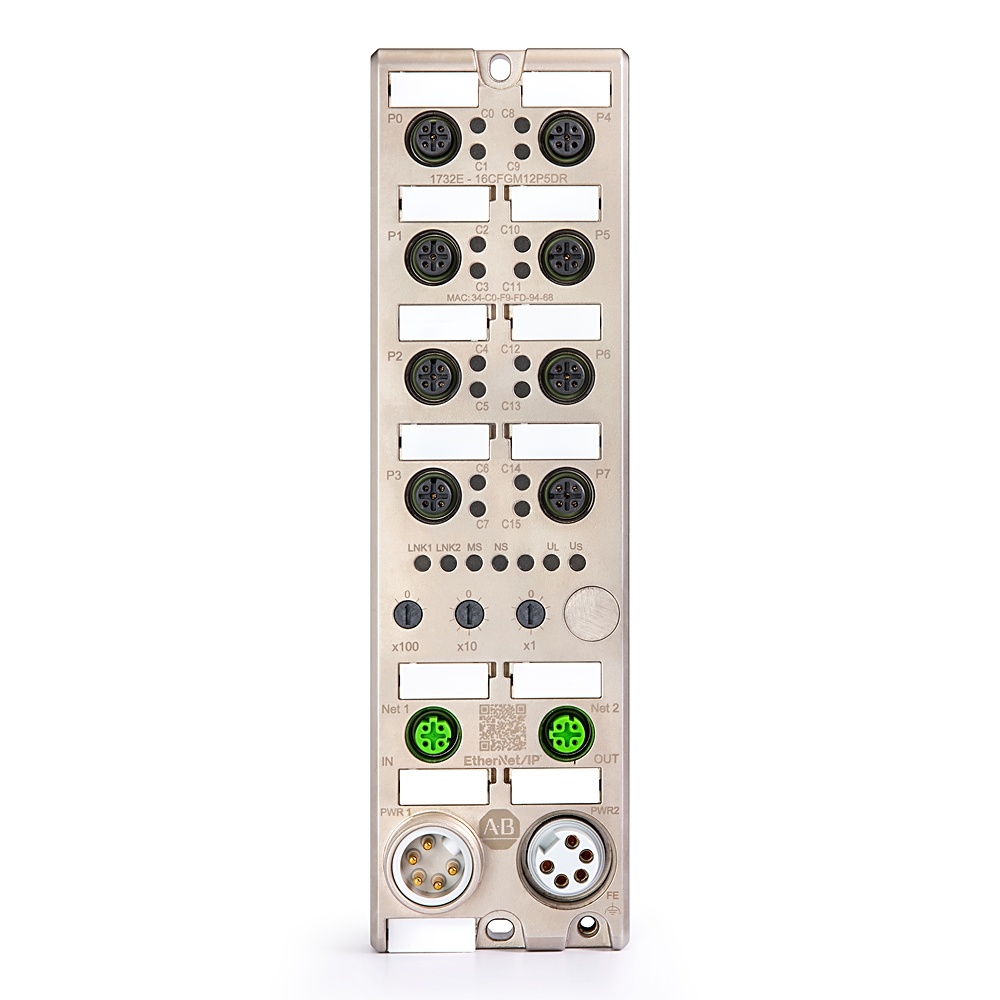

ARMORBLOCK 24V DC ENET DLR I O Module 16 Digital Inputs Outputs Compact DC-Micro-M12 Connector by Allen-Bradley

BRAND: Allen-Bradley
SKU: 1732E16CFGM12P5DR
$2,186.80 List price: $2,725.10
+ −
30 Days Return Electricians Unlock Trade Access
The ARMORBLOCK 24V DC ENET DLR I/O Module features 16 digital inputs and outputs, making it ideal for industrial automation control systems. With Ethernet Device Level Ring (DLR) support for network redundancy and a compact DC-Micro-M12 connector, this module ensures reliable performance in factory and process automation applications.

Alternatively Known As: Allen-Bradley ARMORBLOCK I/O Module, 24V DC Digital I/O Module, Ethernet DLR I/O Module

Technical Specifications
  • Power Supply: 24V DC
  • Inputs/Outputs: 16 digital inputs and outputs
  • Communication: Ethernet Device Level Ring (DLR)
  • Connector Type: DC-Micro-M12
  • Operating Temperature: -25°C to 60°C
  • Protection Rating: IP67
  • Dimensions (H x L x W): 50mm x 120mm x 100mm
  • Weight: 0.5 kg
Key Features
  • 24V DC power supply
  • 16 digital inputs and outputs
  • Ethernet Device Level Ring (DLR) support for network redundancy
  • Compact DC-Micro-M12 connector configuration
Professional Installation Requirements
  • Installation by a qualified electrician or automation technician is recommended to ensure proper integration and compliance with electrical standards.
Applications
  • Industrial automation control systems
  • Factory and process automation
  • Machine control and monitoring
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Energy-efficient 24V DC operation reduces power consumption
  • Supports network redundancy to minimize downtime and waste
Warranty Information

Standard manufacturer warranty applies, typically 1 year against defects.

Available Now

The Allen-Bradley ARMORBLOCK 24V DC ENET DLR 16DI/DO CONFIG DC-MICRO-M12 is available for immediate purchase, ideal for industrial automation and control applications.
