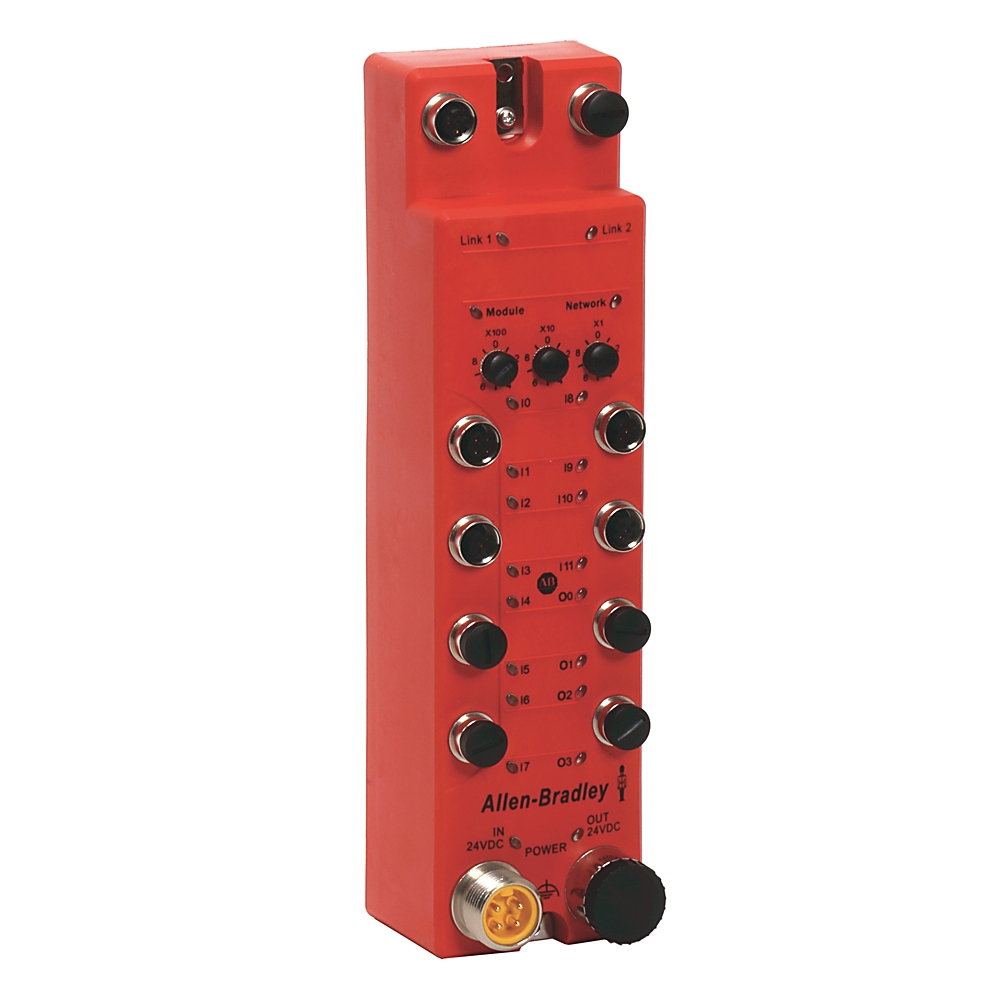

ARMORBLOCK 24V DC Safety ENET DLR Module 12 Digital Inputs & 2 Outputs Micro M12 Connector IP67 Rated by Allen-Bradley
The ARMORBLOCK 24V DC Safety ENET DLR Module is designed for industrial automation safety systems, featuring 12 digital inputs and 2 digital outputs for reliable control. With a compact Micro M12 connector and IP67 protection rating, it ensures robust performance in demanding environments, making it ideal for machine safety monitoring and factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Safety I/O Module, ARMORBLOCK Safety Module, 24V Safety Digital Input Output Module
Technical Specifications
- Power Supply: 24V DC
- Inputs: 12 digital inputs
- Outputs: 2 digital outputs
- Connector Type: Micro M12
- Network: Safety Ethernet Device Level Ring (ENET DLR)
- Operating Temperature: -25°C to 60°C
- Protection Rating: IP67
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- 24V DC operation for safety applications
- 12 digital inputs and 2 digital outputs
- Micro M12 connectors for compact and reliable connections
- Designed for safety Ethernet Device Level Ring (ENET DLR) networks
Professional Installation Requirements
- Installation should be performed by a qualified automation or electrical technician familiar with safety control systems and Ethernet safety networks.
Applications
- Industrial automation safety systems
- Machine safety monitoring and control
- Factory and process automation requiring safety input/output modules
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances machine safety reducing risk of accidents and associated environmental hazards
- Energy efficient 24V DC operation
Warranty Information
Standard manufacturer warranty of 1 year against defects in materials and workmanship.
Available Now
The Allen-Bradley ARMORBLOCK 24V DC Safety ENET DLR 12DI/2DO DC Micro M12 is available for immediate purchase, ideal for industrial safety and automation applications.
